iPad 2 Wi-Fi EMC 2560 Front Panel Adhesive Strips Replacement

Written By: Sam Goldheart
  • Comments: 13
iPad 2 Wi-Fi EMC 2560 Front Panel Adhesive Strips Replacement

Difficulty

Moderate

Steps

14

Time Required

No estimate

Introduction

Use this guide to replace the adhesive on your iPad to seal the deal on a repair-job well done.

Before you begin peeling and sticking tape, it's important to have clean adhesion surfaces on both the front panel and the rear case. Use a spudger to scrape off any large excess bits of original adhesive, then clean all of the gluing surfaces with a paper towel and rubbing alcohol or Goof Off.

It is recommended that you peel each adhesive strip as needed, rather than lay them out all at once.

  1. J3NRrBjpVP5g6244
    J3NRrBjpVP5g6244
    JFjTVWZHZOVKIbJH
    GxlGYWdAr1EkX1o2

    • Carefully grasp the home button with a pair of tweezers.

    • Gently lower and place the home button into the round opening located at the bottom of the front panel.

    • The correct orientation of the home button is shown in the third picture. Make sure the back of the home button is face up and the flat portion of the inner home button circle is oriented to the top of the iPad.

  2. XvIMyNaHl2oShE1P
    XvIMyNaHl2oShE1P
    LIBYUoLNiINmDUQV

    • The two small notched trapezoidal strips will be used to attach the home button bracket to the front panel.

    • Carefully peel off the first trapezoidal adhesive strip.

    I ordered the IPAD 2 BATTERY KIT (IF110-014-3 ). does this come with this adhesive strips?

    GeloXtian Abapo -

    Yes the iPad 2 battery kit includes everything you need, including the adhesive. The strips may look slightly different than the ones shown in this guide, but they will work the same. If you are only replacing the battery, you won’t need to remove or replace the home button, so ignore the home button bracket steps of this guide.

    Sam Goldheart -

  3. L5QOvFn3WM4GPVBe
    L5QOvFn3WM4GPVBe
    5VLS4FNZGRMwevXr

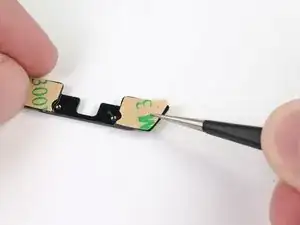

    • Using a pair of tweezers, place the first trapezoidal adhesive strip (minding its correct orientation) on the matching side of the home button mounting bracket.

    • Make sure to line up the profile of the strip with the edge of the mounting bracket.

    • Repeat the procedure for the second trapezoidal adhesive strip.

  4. b6FfjmISPJGkZ1Tj

    • Use a pair of tweezers to grasp the corner of one of the adhesive strips placed on the mounting bracket.

    • Lift and peel the brown backing up off the adhesive strip, revealing the clear adhesive strip.

    • Repeat the procedure for the secondary adhesive strip.

  5. slm1jWPdb5CBWANF
    slm1jWPdb5CBWANF
    hjcwAiR1bfD2FEVV

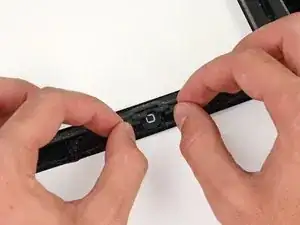

    • Gently place the home button mounting bracket on top of the home button.

    • Make sure the home button mounting bracket is lined up with the bottom of the digitizer.

    Make sure the home button mounting bracket has a parallel gap of 1-2 mm from the bottom of the digitizer. This will ensure that the mounting bracket makes contact with the home contact pins.

    John -

  6. rJlcWSoqH3jgUNkX
    rJlcWSoqH3jgUNkX
    t4sSdfxXnrFDxCxL

    • In the following steps, you will be placing the remaining pieces of adhesive on the front panel.

    • Do not peel the brown backing off the strips just yet.

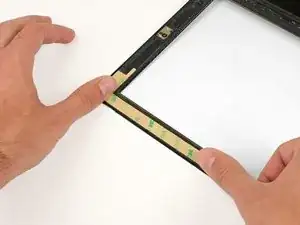

    • Place the largest L-shaped adhesive strip on the top left corner of the front panel.

    • Smooth the strip down from the center out, taking care to not trap any air bubbles between the strip and the front panel.

  7. RtjVtcJSRkPdmEfV
    RtjVtcJSRkPdmEfV
    bcuZkeTEDpX3XsfA

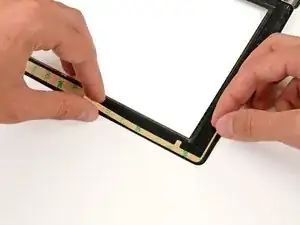

    • Place the thinnest L-shaped adhesive strip on the bottom left corner of the front panel.

  8. ELOKlaIXH3L2bwCx
    ELOKlaIXH3L2bwCx
    RoogRSsPZpMMGfAQ

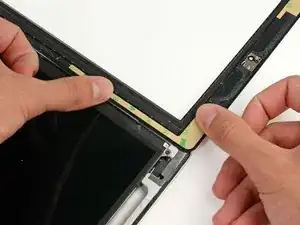

    • Place the remaining thin L-shaped adhesive strip on the top right corner of the front panel, near the camera mounting bracket.

    This is the third to last "L" shaped strip - it's the fatter one, without any diagonal cuts to it (used in the following steps)

    Courtney -

  9. T6RiFUEadVdl3Ib2
    T6RiFUEadVdl3Ib2
    ndfF1itIuBITioh2

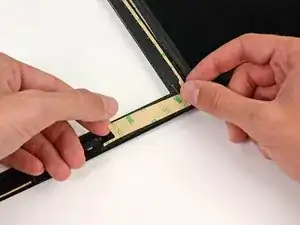

    • Place the straight adhesive strip on the right side of the front panel.

    • If you've already attached the digitizer cable, you'll have to work around/under it to attach this strip.

    I had already reattached the digitizer cable so I used an Exacto knife to trim the adhesive around the cable…worked like a charm.

    Lawrence Lee -

  10. BJGYZgGVZsCvOIuI
    BJGYZgGVZsCvOIuI
    jqjXeEoVX11Z2BL5

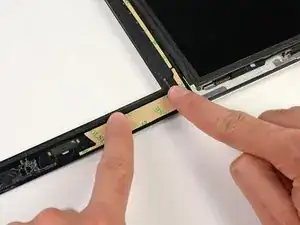

    • Place the last L-shaped adhesive strip on the bottom right corner of the front panel.

    hi, i had my front panel connecting strip torn during repair… what can i do??

    Shahzaib Qureshi -

    i had my ipad 2 front panel connecting strip torn down during repair…

    plz tell me the solution

    Shahzaib Qureshi -

  11. NT4FpPgoQQKWlNME
    NT4FpPgoQQKWlNME
    THsGURYatZ3ZLH1N

    • Lay the thin T-shaped adhesive strip between the bottom edge of the inner frame of the front panel and the camera mounting bracket. The longest edge should be flush with the inner frame.

    I believe this should go above the bracket. There is no metal to adhere to between the LCD and the camera.

    Doug Hoderny -

    Yes, this is definitely the wrong way up. The adhesive strip should run along the outside edge on the screen.

    giff -

    This image needs to be removed. Messed up a couple following this.

    It is definitely upside down.

    Deja Vu -

    This strip is upside down. I followed these instructions and the top of my digitizer is loose now and doesn't stay down in the bezel. I have to buy more strips and do everything over.

    Tim Banks -

    No. Everything is showed correctly. This strip doesn't have to glue to metal, there are plastic spacers for it at the top of the LCD.

    If you afraid the glass will be loose of the bezel then you can cut two thin stripes of another two sided tape and attach them to the bezel's plastic as an extra option.

    KSE -

  12. WCOGperr2KD3vhJG
    WCOGperr2KD3vhJG
    5D5AQQQVrSqPi3Li

    • Place the small hook-shaped adhesive strip below the left side of the home button mounting bracket.

  13. YPNlmQr1PfLSqOfg
    YPNlmQr1PfLSqOfg
    gNQDZ1p2vYwycGtx

    • Lay the final small rectangular adhesive strip to the left of the hook-shaped adhesive strip, immediately to the right of the thin L-shaped strip, and flush with the bottom of the front panel.

  14. mxFOn6qYHYgibYuD
    mxFOn6qYHYgibYuD
    1qlaFRw4qCHKuZwd

    • Make sure that each adhesive strip is placed in the correct location and orientation before peeling the backing.

    • Peel the brown backing up off each adhesive strip.

    • Some of the adhesive strips are quite small and may require some patience to peel the backing.
