Xgody D300 Headphone Jack Replacement

Written By: Kiara Richardson
  • Comments: 0
Xgody D300 Headphone Jack Replacement

Difficulty

Moderate

Steps

6

Time Required

30 - 45 minutes

Introduction

For problems pertaining to poor sound quality, please read this guide. This guide is for replacing the headphone jack on the Xgody D300. You’ll need to know how to use a soldering iron to fully remove the headphone jack from the device. Please follow the steps carefully. By the end, your phone should be working as it normally should.

For more information on soldering, please read through the How to Solder and Desolder Connections guide.

  1. bomTeE3LYcotJgsP

    • Lay the phone on a flat surface so the back is facing upwards.

  2. pJWKdRFbLXqmskdm

    • Insert the pry tool into the seam and pry the back cover of the case along the seam until the cover is free of the case.

  3. VeR4c4Q6GqxXVfi3
    VeR4c4Q6GqxXVfi3
    1vQFQNDMCdUVnAZq

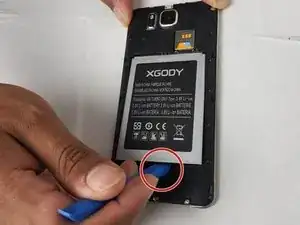

    • Remove the battery using your hands or the plastic opening tool.

  4. ORqoTbYnHbmiGlFg
    ORqoTbYnHbmiGlFg
    BGCYAa1xZaJTOpJf
    b5UBoTpDyJBOysMM

    • Use the Phillips #00 screwdriver to remove fourteen 3mm screws and one 6mm screw.

    • Use the Phillips #00 screwdriver to loosen three captive screws.

    • Lift the housing along the edges using the opening tool and tweezers. There will be a sticky pad that holds the housing to the smartphone.

  5. RrR1pApMMBPQmND4
    RrR1pApMMBPQmND4
    HpwRwJARCbk1Lpnn

  6. IDlXZpul5XsxSBpx

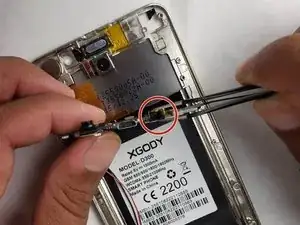

    • After the connections have been desoldered, use the tweezers to remove the headphone jack from the motherboard.

    • Place the new headphone jack where the old one was and solder the connections back to together.

Conclusion

To reassemble your device, follow these instructions in reverse order.
