Introduction

  1. KmcK5RfqDaTk1CwI
    KmcK5RfqDaTk1CwI
    qHFkKKUTZdRedKy4
    oen3QWS4eDs3gUdg
    • Broken screen ? that's a pity

    • You'll need hot air. Not too much thought, you'll melt the plastic otherwise

    • Now just pry it open SLOWLY and apply heat.

  2. FBpQgiO5SuqKMHyK
    FBpQgiO5SuqKMHyK
    LenprfKeUgRM4AMs
    syMEECnmgV1EKbeT
    • Nice, I see you've got the cover off

    • Disconnect the battery (not with a metal tool)

    • Disconnect the touch screen ribbon (don't pull hard, you have to lift the plastic bit before)

  3. hEDYYGxAGeVOYSGh
    hEDYYGxAGeVOYSGh
    RZegaF5wsThxUXLJ
    FXucjfmDxgAbfyUO

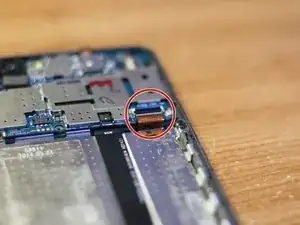

    • Get the battery out (don't bend it too much)

    • Disconnect the LCD ribbon

    • Disconnect the cameras

  4. EbqbFqrFbQWJVLjZ
    EbqbFqrFbQWJVLjZ
    waAtitPdl1fWHLJc
    MCQp6vuUU5Vci1hF

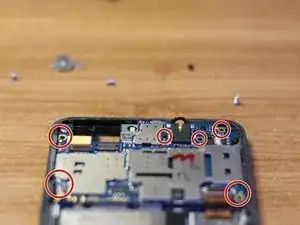

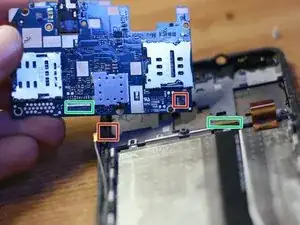

    • Unscrew anything you see

    • Take the SIM trays out

    • Take the motherboard out. You will have to disconnect to ribbon cables

  5. IVnFxurrlaGeAWAJ
    IVnFxurrlaGeAWAJ
    MMQgL2Sxbrc1Tn1y
    ftEfyWy1TPUpPvDe

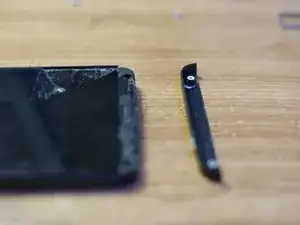

    • Two screws here

    • To take this guy out, you can use heat again

    • Aaaaand with more heat, you will get the screen panel out !

Conclusion

To reassemble your device, follow these instructions in reverse order.
