Toshiba Excite 7c Battery Replacement

Written By: Reyna Serrato
  • Comments: 0
Toshiba Excite 7c Battery Replacement

Difficulty

Easy

Steps

2

Time Required

4 - 6 minutes

Introduction

This guide will show you how to replace the battery on a Toshiba excite 7c. The battery may need to be replaced because it is not holding a charge or the tablet will not turn on. Once the tablet case is open, battery replacement is rather easy and requires only a set of tweezers.

Be careful not to pull the wires of the connector while performing this repair.

  1. 5FlqFPf4xRdJdLGC
    5FlqFPf4xRdJdLGC
    ff43sECRy53xUPGW

    • To open your device use the plastic opener. Locate the seam on your device and gently separate applying pressure down all four sides.

    • The back casing will start to peel away from the screen.

    • Carefully lift and remove the back panel with tablet lying face down on table. this will reveal the back side.

  2. pjrLwtQGYuZ5hZGC
    pjrLwtQGYuZ5hZGC
    UHC1Qp5iU65gBsQK
    6uOeAYRERFsBXPxM

    • Locate the battery on the back of your device.

    • Remove the battery connector using a pair of tweezers.

    • On the side of the battery peel back but do not remove the two black pieces of tape.

    • Remove just to the white line NOT completely.

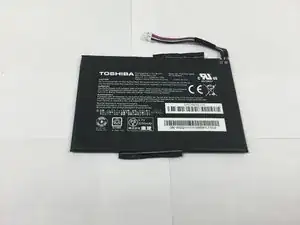

    • Carefully lift the battery out of the device, and set aside.

Conclusion

To reassemble your device, follow these instructions in reverse order.
