Toshiba Excite 10 AT300 Rear-Facing Camera Replacement

Written By: Gus Holz
  • Comments: 0
Toshiba Excite 10 AT300 Rear-Facing Camera Replacement

Difficulty

Easy

Steps

10

Time Required

15 - 25 minutes

Introduction

If the rear facing camera on your Toshiba Excite 10 AT300 is now longer functioning, replacement isn't difficult and this guide will give you the step by step procedure. It involves removing a screw, a ribbon cable, and several copper foil wires.

  1. AbvtZ5L2YyMmhQFp

    • Remove the SD card from the SD card slot.

  2. 6DQpVGT4i6rHiFqO
    6DQpVGT4i6rHiFqO
    DRKCCpHRLCoHUF4F
    4Qae6G5SvDHqrX1o

    • Use the opening tool to separate the front and rear panels by slipping the tool underneath the screen edge and sliding it around the entire device.

    • Make sure you unclip all of the clips on the back panel, or pulling it off will be difficult and may damage the tablet.

  3. glSD1URqoyCrqfqZ
    glSD1URqoyCrqfqZ
    ccyFHQxCoNccEs1K
    B3hvZLQkhomFH1pX

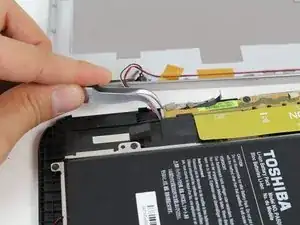

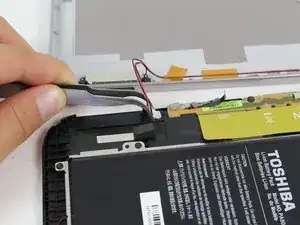

    • Remove the speaker cable from its socket by gripping both sides of the white connector piece with tweezers and pulling straight out.

    • Be careful not to rip the wires out of the white connector piece.

  4. j4QRFwk3goJCVt4D
    j4QRFwk3goJCVt4D
    buBtUl64EfnyGyWM

    • Using a #00 Phillips screwdriver, remove the following screws:

    • Five 3mm Phillips #00 screws

  5. CV3PqmtegJNnLRJZ
    CV3PqmtegJNnLRJZ
    wvpIhUeMgSwKEdgA
    EJeLkhubKdCG5NCG

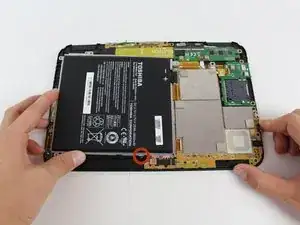

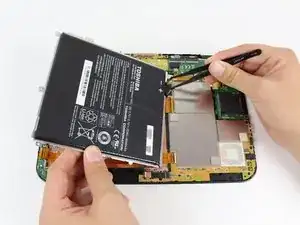

    • Gently lift the battery, pulling away from the tab holding it in place at the bottom.

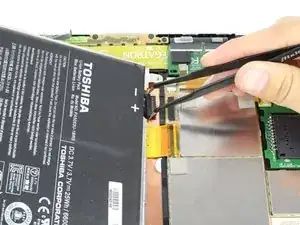

    • While holding the battery up, use a pair of tweezers to remove the battery cable from its connector.

  6. BWsFaM1TTdZLNuwL

    • Using a #00 Philips screwdriver, remove the screw attaching daughter board.

    • Remove the yellow tape using a pair of tweezers.

  7. pDcHrYlUdjJx2bNo
    pDcHrYlUdjJx2bNo
    ILNdsffjXebHZG11
    YtJiulwiYkOnYxEX

    • Unlock the ribbon cable housing using tweezers and/or a spudger.

    • Gently pull the ribbon cable out of its housing using the tweezers or your hands.

  8. 4KgWnAxjCA5yPIoy
    4KgWnAxjCA5yPIoy
    nRi5uvgVHiGhfDGM
    MWeUkpQlZauXaSrP

    • Pull copper tape away from the back, keeping it connected to the green rear camera board.

    • Be careful not to rip the copper tape.

  9. jMLKiMv13tEsWQdF
    jMLKiMv13tEsWQdF
    jLnF2Onv63KaFDMM

    • Using your hands remove daughter board by lifting it off of the tablet chassis. Flip it over and place it next to the tablet face-down.

    • Do not disconnect the red and black wires connecting it to the vibrating mechanism.

  10. wGNX4GxUAiL6SPGZ
    wGNX4GxUAiL6SPGZ
    bGG1wfeG2OsQiQkf

    • Gently pinch the ribbon cable connector between two fingers or with tweezers and pull it straight outwards. The ribbon cable connector should disconnect and the camera can now be replaced.

Conclusion

To reassemble your device, follow these instructions in reverse order.
