Thustmaster Ferrari 458 Spider Racing Wheel motherboard Replacement

Written By: Mohammed Alsogair
  • Comments: 7
Thustmaster Ferrari 458 Spider Racing Wheel motherboard Replacement

Difficulty

Easy

Steps

3

Time Required

10 - 20 minutes

Introduction

Use this guide to replace the motherboard of your Thustmaster Ferrari 458 Spider Racing Wheel.

  1. VQSyfRQHZORM5Ycg

    • Remove the black 10mm using a JIS #1 screw driver.

    • There are 12 screws.

    • Two of the screws are deep inside the device you might need to use a slim screwdriver.

    • In the picture you see a plastic opening tool instead of screw driver because we did not have our screw driver when we were taking the picture.

  2. YIctKmgAqRAgYgxQ
    YIctKmgAqRAgYgxQ
    tdHCmx1Uy23IS63O

    • Remove the two 10mm black screws on the top of device using a Hex 2.5mm Key. Only the two outside screws.

    • Gently pull apart both halves of device to access inside.

    Does anyone know what of rotary encoder sits here or other thrustmastrer wheel?

    Jakub -

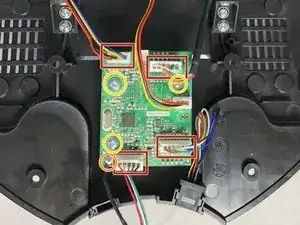

  3. yMqcmsDqUx1GpBfC

    • Using a small plastic opening tool, gently pry up the white connector that connects the USB cable to the board.

    • Cut the black cable as close to the board as possible.

    • Remove the three screws using PH2 screw driver.

    where can I buy the motherboard for the ferrati 458 xbox one x steering wheel

    Antoci Stefan Stefan -

    please help me

    Antoci Stefan Stefan -

    I have the same steering wheel but the cable is cut and I can't change it

    Antoci Stefan Stefan -

Conclusion

To reassemble your device, follow these instructions in reverse order.
