Introduction

This guide will help you replace your taillight bulb on a Volkswagen Jetta (2011 - 2018). The most common problem on a vehicle is a burn-out taillight which can cause a safety hazard for other drivers on the road. Not only is this a safety hazard to other drivers but, you could also receive a fine from the Police.

By following this guide you will be able to replace your taillight bulb effortlessly without any special equipment/tools. This guide lists all the steps and includes detailed information and pictures of the process. It should take approximately 45 minutes to complete this repair but, it may take a little longer depending on your experience.

  1. AiftVwu3bpFGW2QI
    • Open the trunk of your vehicle.

  2. d1puBpA6SFhfOABf
    • Locate the fabric access cover.

    • The fabric access cover is located right behind the the taillight.

  3. F23CU1PAHpVJtWU6
    • Gently pull out the access panel.

  4. xwqWSalVTC4NEOF4
    xwqWSalVTC4NEOF4
    pMrVut4qZGWWMoUB
    JhtoOKMSHoPioMpP
    • Start unscrewing the large plastic screw counter-clockwise.

  5. 3iCGX3nxynqsPoEx
    • Place the screw in a safe spot.

  6. WDKFxTrdBZcu2L2J
    WDKFxTrdBZcu2L2J
    TlWss5FdCOvTvqMj
    • Remove the taillight assembly by gently wiggling it out with both hands.

  7. ZL61VPsRGlR4SSKr
    ZL61VPsRGlR4SSKr
    AjMHqEgo6iQSwts2
    ucTjAlZTs5tHUKE5
    • Unplug the taillight power plug by pinching both tabs to release the plug.

  8. HuGQh3IFYexFgshp
    • Pinch the two release tabs towards each other and lift the bulb bracket out of the tail housing.

  9. PGO5BQQjbmXTXFEF
    PGO5BQQjbmXTXFEF
    AAGVkFwhqgZcJDI6
    YDytaNT6MGZxRYPB

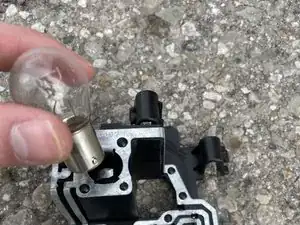

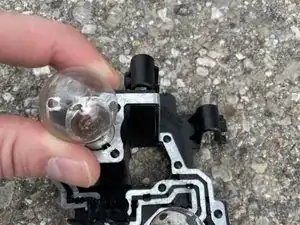

    • Gently turn the bulb counter-clockwise until you can pull it out.

    • Don't squeeze the bulb too hard as it could break.

Conclusion

To reassemble your device, follow these instructions in reverse order.
