TCA Sidestick X Flash and re-install the firmware

Difficulty

Very easy

Steps

7

Time Required

1 - 5 minutes

Introduction

Guide on how to re-install the firmware, if it became corrupted and the joystick is not powering on or not being recognized.

This Guide is for Xbox version of the Sidestick!

    • Download and install the drivers from here.

    • Both the Sidestick and the Quadrant are using the same driver.

    • Press on the Windows button and type "Firmware Update" into the search.

    • Unplug your TCA Sidestick from USB

  4. uapAbvFsKKBIBMXh

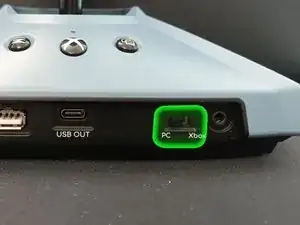

    • Set the switch at the back of the TCA Sidestick to PC mode.

  5. 2Rktqw2ciDjwrxqP

    • Press and hold the XBOX button.

    • Keep holding the XBOX button and connect it to USB port of your computer.

    • Once connected, wait a few seconds and let go of the button

    • Your Sidestick should show up in Firmware Updater.

    • Press OK on the Firmware Updater and wait for update to complete
