TCA Quadrant Flash and re-install the firmware

Written By: Formica Fusca
  • Comments: 0
TCA Quadrant Flash and re-install the firmware

Difficulty

Very easy

Steps

6

Time Required

2 - 5 minutes

Introduction

Guide on how to re-install the firmware, if it became corrupted and Quadrant is not powering on or not being recognized.

    • Download and install the driver package from here.

    • Both the Sidestick and the Quadrant are using the same driver.

    • Press on the Windows button and type "Firmware Update" into the search.

    • Unplug your Quadrant from USB if you already have it plugged-in

  4. eEmdCrlMVEtDHPMi

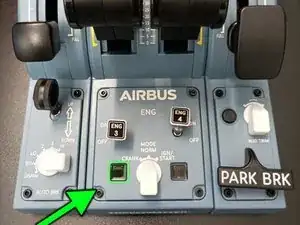

    • Press and hold the button highlighted in the image.

    • Keep holding the button and connect the Quadrant directly to USB port of your PC.

    • Connection must go directly to USB port of your PC and not through the Sidestick

    • Your Quadrant should show up in Firmware Updater.

    • Press OK on the Firmware Updater and wait for update to complete.
