Scuf Reflex Thumbsticks Replacement

Written By: Dominik Schnabelrauch

Comments: 1

Difficulty

Easy

Steps

Time Required

5 - 10 minutes

Introduction

Use this guide to replace or remove the thumbsticks on your Scuf Reflex controller.

Tools

Spudger

Step 1

The faceplate trim is secured by plastic clips.
At the bottom tip of the right grip, insert the flat end of a spudger or a clean fingernail between the faceplate trim and the back cover.
Pry up to release the faceplate trim’s bottom right clip.

Step 2

At the bottom tip of the left grip, insert the flat end of a spudger or a clean fingernail between the faceplate trim and the back cover.
Pry up to release the faceplate trim’s bottom left clip.

Step 3

Insert the flat end of a spudger between the faceplate trim and the back cover, next to the headphone jack.
Pry up to release the plastic clips securing the center of the faceplate trim.

Step 4

The top corners of the faceplate trim are slotted up underneath the faceplate.
Lift the bottom edge of the faceplate trim and thread it up and over the thumbsticks.
Pull the top corners of the faceplate trim out from underneath the faceplate and remove the faceplate trim.
To reinstall the faceplate trim, slide its top corners under the faceplate and over the thumbsticks, then push down along the edges of the trim to engage the clips securing it.

Step 5

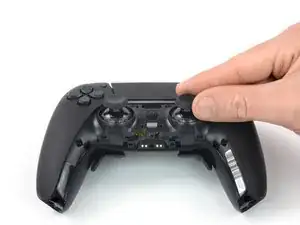

Pull the thumbsticks straight up and off of their joysticks to remove them.
To reinstall the thumbsticks, place them in their original position and push down until they lock in place.

Conclusion

To reassemble your device, follow the instructions in reverse order.
