Samsung NP-N145-JP02US Screen Replacement

Written By: Laura Denali Harbinson
  • Comments: 0
Samsung NP-N145-JP02US Screen Replacement

Difficulty

Moderate

Steps

4

Time Required

15 minutes

Introduction

This guide will provide instructions on how to entirely replace the screen of a Samsung N145 laptop. You will be given steps on how to detach a the screen on your device and attach a new one. You will want to perform this replacement when the screen no longer works or randomly blacks out when being used.

  1. o2paAhCtEqKNXNlV

    • Before starting replacement, turn off the device and disconnect all cords.

    • Close the device, lay it face down, and remove the battery.

  2. 5lOwbmIBEp2jlovp

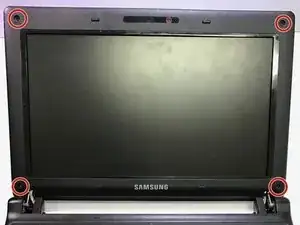

    • Remove the four black screw covers located at all corners of the screen with tweezers to expose the screws

    • Remove the four 4.5 mm screws located at each corner of the screen by using the Phillips #0 screwdriver.

  3. W4E6gRis4sea2lid

    • Use a blue prying tool to pry the screen frame off.

    • Unscrew the four 6.5mm screws that are securing the screen using Phillips J0 screwdriver head.

  4. loWOPrTESdmtQXDG
    loWOPrTESdmtQXDG
    TRNRcd4lIiXIPcDN
    PnDNyFtGXcdBLWl1

    • Using your fingertips, gently pull screen to pop it out of the frame.

Conclusion

To reassemble your device, follow these instructions in reverse order.
