Samsung Galaxy S22 Ultra Lower 5G mmWave Antenna and Interconnect Cables Replacement

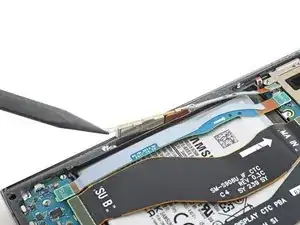

Use the pointed end of your spudger to pry up and disconnect the lower 5G mmWave antenna press connector.

Use your Phillips screwdriver to remove the two 3.5 mm-long screws securing the antenna bracket.

Insert the pointed end of your spudger between the lower screw mount of the antenna bracket and the frame.

Pry up on the bracket until you can grab it with blunt nose tweezers or your fingers.

Remove the lower 5G mmWave antenna.

Use the pointed end of your spudger to pry up and disconnect the primary interconnect cable from the motherboard.

Repeat for the secondary interconnect located to the left of the primary cable.

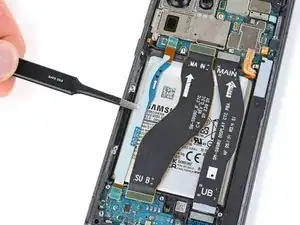

Use the pointed end of your spudger to pry up and disconnect the primary interconnect cable from the charging board.

Repeat for the secondary interconnect cable.

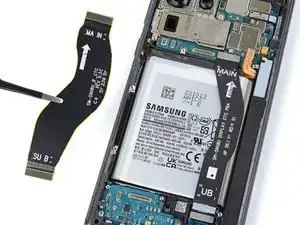

Grab and remove the interconnect cables from the frame.
