Putting On A Transparent Shell On Flipper Zero

Written By: Kaeden Smith

Comments: 0

Putting On A Transparent Shell On Flipper Zero

Difficulty

Moderate

Steps

Time Required

5 - 10 minutes

Introduction

Today We Will Go Over How To Replace Your Flipper Zero Shell With A Transparent One. This One In Particular Is The Screen Delete Version Which Looks Much Better Than The Non-Screen Delete Version. This Is Also A Good Option If You Cracked Your Flipper Zero Screen, Because Flipper Zero Does Not Offer Screen Replacements.

Tools

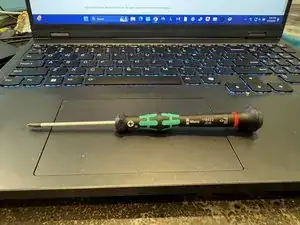

WERA Phillips #0 Screwdriver

Parts

Flipper Zero Clear Shell - Screen Delete Version

Step 1

An Easy Way To Get The SD Card Out Is To Grip It With Your Fingernails.

Step 2

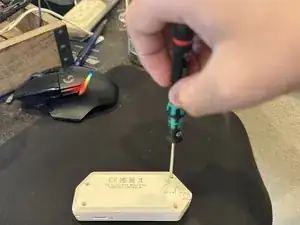

Use A PH0 Screwdriver To Open/Remove The Back Part Of The Shell.
Be Careful, The Screws Strip Easily. One Way To Combat This Is To Press Down On The Screw While Unscrewing It.

Step 3

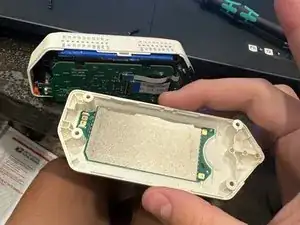

Using Your Fingernail, Spudger, Guitar Pick, Or Any Other Prying Tool, Take Off The Back Shell.

Step 4

Using Your PH0 Screwdriver Unscrew The Two Short Screws Holding The Internals Down To The Shell.
Be Careful With The iButton Pins, They Break Off Very Easily.

Step 5

Put Your Flipper's Internals Into The New Shell.
Screw The Three Short Screws Back Into Place.
Do Not Make The Screws Too Tight As The Threads On The New Transparent Board Will Strip Because It Is 3D Printed.

Step 6

Using Your, Spudger, Guitar Pick, Flathead Screwdriver, Or Any Other Prying Tool, Take Off The NFC Board
Do Not Use Your Fingernails To Take Off The NFC Board!
