PowerA Spectra Infinity Enhanced Bumpers Replacement

Written By: Kevyn Jorge
  • Comments: 1
PowerA Spectra Infinity Enhanced Bumpers Replacement

Difficulty

Moderate

Steps

8

Time Required

10 - 15 minutes

Introduction

Use this guide to replace the bumpers of a Power A Spectra Infinity Enhanced Xbox controller.


The bumpers may need to be replaced if they no longer press down, get stuck, or do not provide imput to the controller when plugged in. Please ensure that the controller is not plugged in before taking it apart.

  1. DBxFkkqT1pmpRNOU
    DBxFkkqT1pmpRNOU
    vKVrCVMKyOZQ2fdu

    • Flip the controller so the back is facing up.

  2. Aox3ap5jbSIeFuJJ

    • Remove the eight 10 mm screws from the back of the controller using a Phillips #0 screwdriver.

  3. 6uwELqf5qBsOUb6g
    6uwELqf5qBsOUb6g
    oQtoZTCrGGCB21lM

    • Unlock the trigger locks before removing the backplate.

    • This will make taking the plate off easier.

    • Use your fingers and carefully remove the backplate.

  4. TUNupIxDZl52GOve

    • Remove the two 10 mm screws connecting the motherboard to the faceplate using a Phillips #0 screwdriver.

  5. h5OQtlwL3W1ayhpX
    h5OQtlwL3W1ayhpX
    GHyW16BfaUcrmysb

    • Use your hand to separate the motherboard from the face plate.

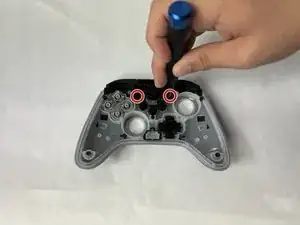

  6. mfnhuOIEP6WtKiwy

    • Remove two 10 mm screws holding the bumper to the faceplate using a Phillips #0 screwdriver.

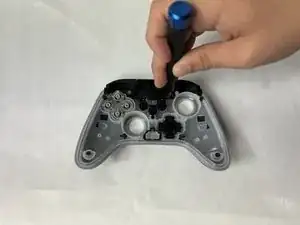

  7. xrXVpgT1TwhSknXH
    xrXVpgT1TwhSknXH
    ZElZuldOV6hhAqdC

    • Remove the single 7.9 mm screw holding the bumpers to the faceplate using a Phillips #0 screwdriver.

  8. OcgpJFPVUwSqv1cS

    • Remove the freed bumpers from the faceplate.

Conclusion

To reassemble your device, follow these instructions in reverse order.
