PlayStation 4 Slim Hard Drive Replacement

Written By: Jordan Crooks
  • Comments: 2
PlayStation 4 Slim Hard Drive Replacement

Difficulty

Easy

Steps

6

Time Required

2 - 5 minutes

Introduction

One of the reasons your PlayStation 4 Slim might not be booting is a failing hard drive. Alternatively, you may just be looking to replace it for an upgrade to either have more storage, or utilize a solid state drive to improve load times and speeds.

Before doing this procedure, here are a few steps to check for and see if it's failure that requires complete replacement (you can ignore this checklist if you are simply upgrading):

  1. Sometimes dust can buildup in the system, causing it to overheat and shutdown or not get past boot. It could even be inside where the hard drive connects to the system.
  2. Your drive's data might be corrupted, which can be fixed by a simple system software reinstallation and other safe mode boot fixes. You can boot into safe mode by pressing and holding the power button for 7 seconds and go down the list of restore options.
  3. You can also check for failure by looking for tell-tale signs. This includes any noises coming from the hard drive, especially loud and quick clicking, slower performance than usual, sudden system failures/forced shutdowns, and more.

Before beginning, power down your system fully (do not put it in rest mode) and disconnect all cables, especially the power cable.

  1. EuYRhoCc3kWI2nnW
    EuYRhoCc3kWI2nnW
    alGsYWre4LXcQXFv

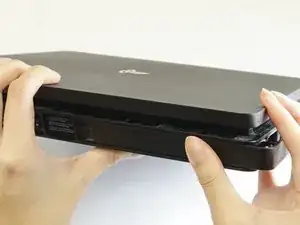

    • Slide your thumb to the right to remove the plastic cover.

  2. oZpqPYSoafS4E3mD
    oZpqPYSoafS4E3mD
    YQFkdYUZT4bMCD2D

    • Remove the silver 6 mm #0 Phillips screw that holds the hard drive caddy in place using your screwdriver.

    • This screw is very important as it ensures the drive does not come loose from the connector during operation.

  3. 1CMWCFWPTvaPMxur
    1CMWCFWPTvaPMxur
    SXOVvQOgeWU5E3T3
    Q2kXpRwMLDlKtfby

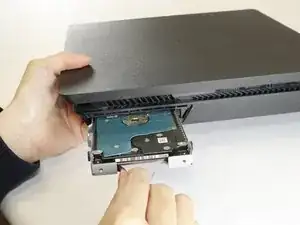

    • Pull out the black glossy tape handle using your fingers.

    • Remove the caddy from the bay.

  4. JOxs5gyIkliXwMjr
    JOxs5gyIkliXwMjr
    CUEVQA3sbNF5cZfl
    yIn6Dy6AhyscuwFV

    • Remove all four 8 mm Phillips #0 screws from the hard drive caddy (two on each side).

  5. Dspvms1QruMgEr3K
    Dspvms1QruMgEr3K
    vR5DxohTmd5DNPsF

    • Slide your hand under the sled opening near the black tape handle, and press one of your fingers against the slate drive to push it up.

    • Carefully extract the hard drive from the caddy.

  6. HoyGp3nsrC6LSS63
    HoyGp3nsrC6LSS63
    jfw4noFUS5MRrTxW

    • Place your replacement hard drive or solid-state drive into the caddy.

    • Make sure the drive is upside with the connector's golden pins facing up like so.

    • Also be sure the connector is facing away from the black tape handle. This and the above point will ensure proper connection to the Playstation 4.

    • If installing a solid-state drive, make sure the screw holes of the sled and the drive are aligned properly before screwing back in.

    • This isn't a problem with 2.5" hard disk drives since the thickness allows for proper alignment during placement.

Conclusion

To reassemble your device, follow these instructions in reverse order starting from Step 4.

Be sure to have a USB stick ready with an official PS4 firmware update file from Sony's website to reinstall the system software on your new hard disk or solid state drive. Follow Sony's instructions for formatting the USB as well.
