PlayStation 2 Slimline CMOS Battery Replacement

Written By: tlroesner
  • Comments: 4
PlayStation 2 Slimline CMOS Battery Replacement

Difficulty

Easy

Steps

3

Time Required

10 - 15 minutes

Introduction

  1. GOvnljT5etJXWjJo
    GOvnljT5etJXWjJo
    ocQJQENUDEIkE3Qg
    bGuHunnWUqSiXtyf

    • Remove all five screws on the downside of the PS2 Slimline

    • Remove the "Do not void" seal carefully, underneath is the fifth screw located.

  2. BGNYSCUcfckqaRXo
    BGNYSCUcfckqaRXo
    vC63QCGDjW3YOlUA

    • Take a metal spudger and open the chassis

  3. GFZlSdbVcN5dIgm6
    GFZlSdbVcN5dIgm6
    WUgL4l1l6iMJALlr
    ChRg3A3LqohuQFsy

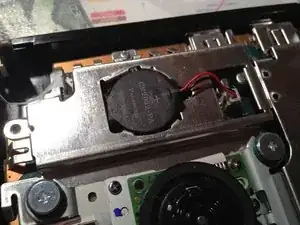

    • Locate the battery on the motherboard

    • Use a metal spudger to pull it up

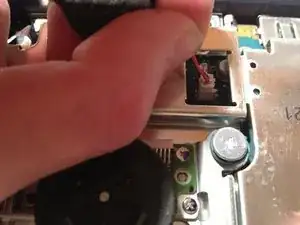

    • Pull the cable and the battery is removed, ready to replace

    Hey, thank you. Do you know the name of the connector? There are many connectors for cmos batteries out there. Thank you in advance.

    protux -

Conclusion

To reassemble your device, follow these instructions in reverse order.
