Philips Sonicare DiamondClean HX9340 Battery Replacement

Written By: oldturkey03
  • Comments: 59
Philips Sonicare DiamondClean HX9340 Battery Replacement

Difficulty

Moderate

Steps

11

Time Required

30 minutes - 1 hour

Introduction

The toughest part with this task is the separation of the outer shell and the inner workings. The two tabs that hold it together are hard to locate and separate. They do require a lot of force to actually get separated.

  1. tbKVFblIIHuKtwyA
    tbKVFblIIHuKtwyA
    PXCYuUPURgjVIZWG
    tjSwvGAeeKnrYKBW

    • Here is the Philips Sonicare handle HX9340 that no longer holds a charge

    • This is the bottom endcap that requires removal.

    • A few layers of cardboard gets wrapped around the handle to protect it from any marring or other damage.

    Die Endkappe lässt sich ohne Rohrzange relativ einfach mit dem Jimmy raushebeln.

    Martin Jaeger -

    Wenn die Bürste nicht mehr reagiert und auch nicht lädt, muss nicht zwingend der Akku mürbe sein. Bei meiner HX9370 war die Kopfdichtung undicht. Dadurch kam Wasser ins Innere. Nach trockenblasen mit Pressluft lädt und arbeitet die Zahnbürste wieder. Meine Herausforderung ist jetzt noch, eine passende Kopfdichtung zu bekommen.

    Martin Jaeger -

    Z.B. bei Amazon: https://www.amazon.de/BAAQII-Wasserdicht...

    VauWeh -

    You can remove the end cap by applying a bit of glue stick glue on the end cap and then gluing a separate glue stick to it. This way you have a pulling stick for the cap and only need to pull it out. By doing this you can easily remove the end cap without damage to the toothbrush.

    The only thing that might get damaged is the silver layer of paint on the cap.

    Tula -

    • BEFORE trying with tools, it is possible to get the cap off as well as the inner part of the toothbrush without any tools. This will not damage the toothbrush; actually it will possibly save the toothbrush from being marred.

    • Simply push the metal head at the top of the tootbrush downwards into a hard surface with some force and the bottom cap and the inner part will pop out by itself.

    • This works on both old and new Sonicare models.

    • If this worked for you, simply skip Steps 3–6.

  3. qiVOMubadh22Rnd4
    qiVOMubadh22Rnd4
    VKWMihCPs3alxWs5
    nHXRutNvbTo4MtTQ

    • Using a pair of pliers to apply some pressure round the handle. The best place to start is the wider part of the rectangular base and about 1/2" to 3/4" from the bottom

    • Continue to apply pressures around the whole base of the the handle moving to each side of the rectangular base.

    • It may take a few complete rotations to finally open up the gap between base and handle.

    Beim Öffnen muss man sehr vorsichtig vorgehen, da das Plastik sehr spröde ist und sehr schnell einreißt. Dann ist die Reparatur nämlich vorbei bevor sie begonnen hat.

    Michael S. -

  4. GrpUTDRr5pxKp6vr
    GrpUTDRr5pxKp6vr
    bYBj22Dp6KgD4iAs
    D5G1dw6l2mlangbx

    • Once the gap opens up, utilize a small flathead screwdriver to insert it into the gap to widen it.

    • Endcap coming out of the handle. Once the gasket will become completely visible

    • the endcap can be removed.

  5. srj5p2MsTmgsaUkW
    srj5p2MsTmgsaUkW
    rHEKxdi64AVnLsRj
    HNmMeiptxFiSeFnD

    • Here is the endcap showing the tabs that hold it securely in place once inserted

    • There will be two plastic tabs that hold the inner workings to the outside handle. These are hard to reach and not easy to see.

    • Using a long small flathead screwdriver (or similar tool) to find those tabs is the difficult part on this job.

  6. roUNUWrxdJKydPWp
    roUNUWrxdJKydPWp
    wuLZGHVWZG4PjkKb
    EFO6AJdUKYKwbWqX

    • Once the tabs have been properly located, insert one tool on each side to loosen compress the base and apply downward pressure on the outer handle. For this the top end of the handle needs to rest against a solid base. It does require a considerable amount of downward force to accomplish this.

    • With the tabs loosened and the handle opushed downward, the inner workings of the toothbrush will loosen and pop out of the handle.

    • Remove the mechanics out of the handle.

    I found I had to use two very thin (almost sharpened) flat screwdrivers to get between the taps and the outer handle. And then push down the outer handle. It's no use just pushing the inner base down.

    Geos Yannis -

    I found I had to use two very thin (almost sharpened) flat screwdrivers to get between the taps and the outer handle, to push them towards the center (i.e. each other), so that they unlock from their recess in the outer handle. And then push down the outer handle to slide out the inner workings. It's no use just pushing the inner base down.

    Geos Yannis -

    Nachdem die Rasten etwas gelockert wurden, kann man mit der Rohrzange auch in deren Höhe kräftig & beherzt drücken (auf die schmale Seite) und dann die Bürste auf kräftig auf den Tisch schlagen (weiter gedrückt hatten) … dann kommt die Mechanik auch heraus

    Jürgen Laskowski -

    Druck mit der Zange in Höhe der Rasten (ohne vorher irgendwas zu lockern) auf der schmalen Seite und gleichzeitig kräftiger Druck nach unten auf den Tisch hat bei mir auch gut funktioniert.

    Martin Niehoff -

    Pheww that was hard. I used the smallest flat head bike tool I had, with flashlight in month, pried open one of the tabs then slid a thin piece of plastic in between (plastic slip cut from plastic cup); then, I proceeded with foing the same on the other side. Success.

    Simon Li -

    That left tab looks kind of mangled. You can’t go straight down to remove the tabs you have to go behind them and twist the screwdrivers to disengage them. I used two small screwdrivers. Once you do that it actually requires very little force to push out of the body.

    Narek Bayanduryan -

    All I had to do was to push the vibrating metal piece in the brush end to hard surface and then hit the open rear end with the palm of the hand. The inside just popped out.

    Goy Alamn -

    Painting knives are great in maintaining the loosed position of the tab on one side without occupying too much space while working the other side

    hello -

    Two small screwdrivers did not work for me, perhaps because the tips were too thick; I think the tips went between the tab and the inside assembly, instead of between the tabs and the case. It's not easy to see, but the tabs engage with indented holes inside the case. I slipped two small pocket knife blades down inside, very flat against the inside of the case, and the tabs easily disengaged. The inside was very easy to push out by pressing on the tip - no hard surface or large amount of force was needed.

    Bruce Girton -

    If you use a similar strategy to removing the end caps, this is pretty easy. Apply pressure to the case walls that are perpendicular to the walls with the tabs and the case will deform enough to let you slide the internals out past the tabs. Worked for me anyway.

    Gabriel Vogel -

    My model is HX993B - which should be very similar. Two screwdrivers are tricky, they are too slippery. I finally managed to slide the inner part out with two toothpicks, they can stay in place and you have free hands..

    My problem was a loose head, because the screw holding it fall out. Just added some thread-lock, tighten it - fixed!

    An image where exactly the toothpick has to be....

    https://pasteboard.co/9ZAGoTUgIq8Y.jpg

    Jens Behrens -

  7. esxCGtgPyvEVjquY
    esxCGtgPyvEVjquY
    g5bL1bXZGcpALkRI
    rOw2MTKGgMVRQiCQ

    • Remove the rubber protectors from the PCB side

    • as well as the battery.

    • Here is the battery to be replaced. Sanyo part number 4235 010 13068

  8. CWLHigIAVCAm2lgC
    CWLHigIAVCAm2lgC
    mjvOMAxN6AZIDHNQ
    NYZmBvPaXRnHADMq

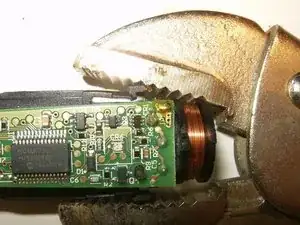

    • There are three places that will have to be desoldered.

    • Positive battery contact

    • Negative battery contact

    • and a jumper

    • For the jumper the only thing required is to remove the solder between the pads.

    • Apply some flux to the jumper. The pliers will help to stabilize the PCB during soldering. any other means to hold it steady can be used.

    Why do we need to desolder the jumper?

    Ben Williams -

  9. J6c2quHWkaTAnUoN
    J6c2quHWkaTAnUoN
    fP5DZ5rgDoUV2GiG
    IRldArJCSa1tcEaw

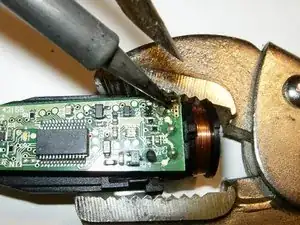

    • Using a soldering iron, remove the solder bridge between the jumper pads.

    • Using flux and desoldering braid remove the solder from the negative tab of the battery.

    • Solder bridge from jumper cleaned

    • Negative battery tab unsoldered from PCB

    hallo, ich verstehe nicht, warum ich zuerst das Lötzinn zwischen den beiden Lötpunkten entfernen, und später - nach dem Einsetzen des neuen Akkus - die beiden Lötpunkte wieder verbinden muss. Kann ich den Akku nicht austauschen, ohne die Lötbrücke zu trennen?

    Jamanote -

    Gleiche Frage, leider keine Antwort.

    Jan Holler -

    @janholler Yes you can for as long as the battery is not connected to that solder bridge. I can’t remember exactly why I added this to the guide but remember there was a reason for it. Possibly to disconnect the circuitry to prevent a short circuit while replacing the battery.

    oldturkey03 -

    Durch das Auftrennen der Lötbrucke wird der Akku abgetrennt, die Schaltung also spannungsfrei. Dadurch werden Kurzschlüsse verhindert. Also eine reine Sicherheitsmaßnahme, wer will kann das auch überspringen, riskiert halt einen Schaden.

    VauWeh -

    @oldturkey03 That was "Just in time". ;-)

    VauWeh -

    @vauweh I knew there was a good reason for that :-) Thanks brother!

    oldturkey03 -

    Es handelt sich um einen Li-Ion Akku. Nicht umsonst steht auf diesem "Warning: Risk of Explosion".

    Die Brücke sollte man also entfernen und dann mit dem Entlöten des Minus-Pols fortfahren um unter allen Umständen einen Kurzschluss zu vermeiden.

    Michael S. -

  10. NvH2Cy2YIVtEaphh
    NvH2Cy2YIVtEaphh
    KDa4hkAdYneFWldx
    sAwogaXvdRoVDZKU

    • Apply flux to the positive contact of the battery on the PCB (Incidental finding is a SMD fuse F1 on this PCB)

    • Using desoldering braid unsolder the positive contact from the PCB.

    • Apply some gentle pressure with a small tool to remove the battery.

    • The battery should remove easily. If it does not, double check the battery contacts on the PCB to ensure they are not still connected somewhere. Another going over with the soldering iron may be required to complete that task.

  11. OUvmlwRlEqlOhFTW
    OUvmlwRlEqlOhFTW
    3RKsTIvLyAB4L3WT
    f3KbroRQUZMK1CUv

    • Battery removed from the PCB and the solder pads on the PCB are now clearly visible

    • In an attempt to determine the type off battery the red plastic covering was removed. The battery is a 3.7V lithium-ion battery that measures approximately (rounded) 14mmX49mm. Roughly the size of a AA battery.

    • The groove on the battery is always on the positive end of the battery.

    The battery is a “14500” Li ion battery. You can find them easily. You can buy them with tabs, or without tabs.

    Geobio Boo -

    I removed the inner mechanics because there was an ugly sound when operating the unit. The pin on which the brush is fixed was rather loose. It turned out that a small screw on top of the unit was loose. Easy fix! Thank you for your excellent description! (Unfortunately I damaged the white sealing ring in the top aperture in the process of reassembling. The ring is VERY subtle, so take care.)

    Peter-Christian -

Conclusion

To reassemble your device, follow these instructions in reverse order.
