Philips HC5450 Disassembly

Written By: Jurrie

Comments: 10

Difficulty

Easy

Steps

Time Required

8 minutes

Introduction

A quick disassembly of my Philips HC5450 1415 /A. I needed to revive the batteries.

Tools

Step 1

First step is to take off the front like you normally do when cleaning.

Step 2

Pry off the silver bezel. This is attached pretty firmly. Start at the front, and go all the way. The front has tabs with a large hook, so it might only fully disassemble when you have pried it loose a long way and you are able to flex the bezel a little.
During this step, I broke the last tab of the silver bezel. Too bad, but the bezel is still firmly attached when reassembling.

I started in the middle by the adjustment wheel and rested my prying tool on the adjustment wheel and lifted the silver bezel

Göran Israelsson -

Step 3

Use a T8 Torx driver to remove the four screws.

Step 4

Undo the top part of the black body. I started at the back. It is retained with clips, but is not as firmly attached as the silver bezel.

Step 5

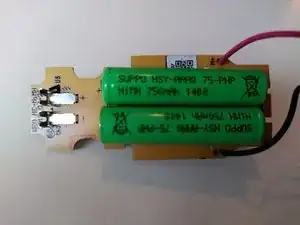

The PCB can now be taken out. The connection to the charging pins is not screwed or soldered, but a U-shaped connector that's just retained by friction.

Step 6

The assembly is held in place by one Torx T8 screw, identical to those from step 3.
The ring of the length-adjustment-assembly can slide down. A little pin-and-spring will fall out - don't loose it! It is used to make the "clicking" feedback when rotating the ring.
I did not disassemble this assembly any further.

Hi! what about the small plastic pin with the spring? when I opened it it fell down, I've got it, but I don't know where to put it, mounting it back.

t.coyote -

Conclusion

To reassemble your device, follow these instructions in reverse order.
