PSP 2000 Joystick / Analog Stick Replacement

Written By: ZFix
  • Comments: 1
PSP 2000 Joystick / Analog Stick Replacement

Difficulty

Moderate

Steps

10

Time Required

10 minutes

Introduction

How to change / replace joystick (analog stick).

  1. DhxJStaAOg6ffbPf
    DhxJStaAOg6ffbPf
    JVFBwbyWKqd4OOHO
    E1lraOKOCohYBAjQ

    • Remove the battery and memory card!

  2. q1W1eK2qMABcLnhQ
    q1W1eK2qMABcLnhQ
    BaO3O3ZxvXCvI1go
    6JfXvCBoagYmtPX5

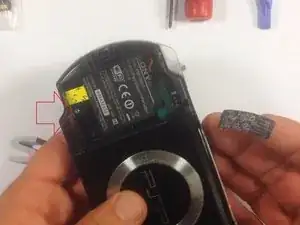

    • You have to remove seven screws.

  3. tEnADUOkPQ1ju2SC
    tEnADUOkPQ1ju2SC
    f1uHFniLPXEkqUAC

    • The front face-plate.

  4. mnlBrcnhqVBMllED
    mnlBrcnhqVBMllED
    1HHGMm4DjqXK4cTe
    EtSxcF6MksUUTy5h

    • The plate with volume-start-home key flex.

  5. AAKfo5n3rBex6s3G
    AAKfo5n3rBex6s3G
    Zxq4vIUJnXpJTQvJ
    qZEelTOxCBXURyYT

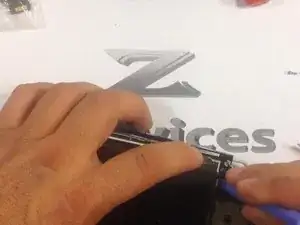

    • Be careful while removing the screen! Release the cables for screen and "volume-start-home keys"!

  6. 3BPTbUsFQ5tiPEQV
    3BPTbUsFQ5tiPEQV
    3oAxughLSsYPuXPP

    • Insert wisdom here.

  7. 6ul6brLteQX1cDqt
    6ul6brLteQX1cDqt
    WHbqPCXX2VqUFolV

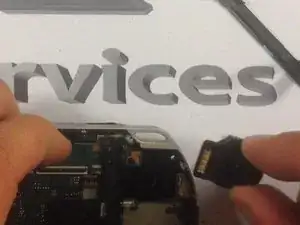

    • Slightly lift the board and remove the joystick!

  8. FGGllggPuca2sdbg
    FGGllggPuca2sdbg
    vLldSTrNELIqZq3I

    • Now is the time for the new replacement part.

  9. 1IFMnTvqLDN5p3kG
    1IFMnTvqLDN5p3kG
    3nGpDVOPLZPRkNsw
    HCJTnRRtNmUwdijC

    • The assembling now is easy.

  10. Jq4AKc1eYQK2Feaw

    • That's all. I hope I've been helpful.

    I just wonder where I can get a new analog stick for my PSP 2000 in 2017?

    tramngoc1305 -

Conclusion

To reassemble your device, follow these instructions in reverse order.
