PS5 Pro Chip ID

Written By: Shahram Mokhtari
Published: 02/12/24
  • Comments: 0

PS5 Pro Chip ID

Published: 02/12/24

Teardown

Introduction

This guide contains a selection of photos and chip identification summary for the PS5 Pro. Check out our PlayStation 5 Pro teardown for more details.

Special thanks to community member CChin for his contribution!

  1. XNWBJrbEilZ4dZuk
    XNWBJrbEilZ4dZuk
    o4WwbHlRCnOOg5N4

    • Sony/AMD CXD90072GG/100-000000735 applications processor

    • Likely Sony CXD90069GG I/O controller

    • Winbond W25Q16JV 2 MB serial NOR flash memory

    • Infineon XDPE14286A multiphase controller

    • Texas Instruments TUSB1044 USB Type-C 10 Gbps bidirectional linear redriver

    • Likely Richtek USB Type-C redriver

    • Kioxia TH58LKT2T25BA8C 512 GB NAND Flash

  2. 4QXJZeUxebNNM3EV

    • Richtek RT5126 power management

    • Richtek RT5127 power management

    • Monolithic Power Systems MP9162A synchronous step-down converter

    • Texas Instruments TPS2001D USB power-distribution switch

  3. p6E2LLQ1Tjp2rQ1b
    p6E2LLQ1Tjp2rQ1b
    SIsEsPIJPNYCmqVe

    • Samsung K4ZAF325BC-SC20 2 GB GDDR6 SDRAM memory

    • SK hynix H5CG46AGBDX017N 2 GB DDR5 SDRAM memory

    • Sony CXD90070GG SSD controller

    • Samsung K4A4G085WF-BCTD 512 MB DDR4 SDRAM memory

    • Kioxia TH58LKT2T25BA8C 512 GB NAND Flash

    • Nuvoton MN864739 likely HDMI retimer

    • Infineon PMC41430 power stage

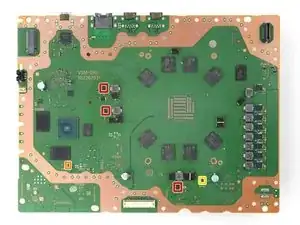

  4. 6FQXjfFapQX1EAFA

    • Vishay SIC655A power stage

    • Monolithic Power Systems MP9162A synchronous step-down converter

    • Texas Instruments TPS2001D USB power-distribution switch
