Introduction

To clean out dust and debris from the controller, the outer casing must be removed for effectiveness. This will allow you to access the inner layer of the device and thoroughly wipe down any gunk that is causing malfunction.

  1. qWbOUArZ5YPMVlaQ
    • Insert an opening tool in the gap between the rear and front case.

    • Pry around the perimeter until the front case releases.

    • Remove the front case.

  2. u62bbTpqOyh1p1oP

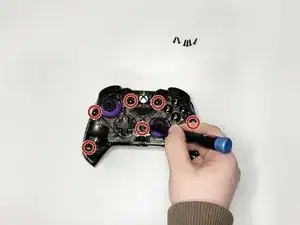

    • Remove all seven 9 mm Phillips #000 screws securing the midframe.

    • Remove the midframe.

  3. lwn6A1ShvxWv2nSv
    lwn6A1ShvxWv2nSv
    LSkUZUdEZS5cDucV
    • Optional: With a pair of tweezers, carefully wipe down the device.

    • It is recommended to use electrical disinfectant wipes or a microfiber towel to clean any excess debris.

Conclusion

After you have thoroughly cleaned the device, follow these steps in reverse order to reassemble the device.
