Introduction
If you need to replace a thumbstick of your PDP Rematch Advanced, take out the back shell with this guide. Both thumbsticks are attached to the motherboard. The thumbstick can be removed by taking out the back shell and twisting the thumbstick off of the motherboard.
-
-
Orient the controller so the back side is facing you.
-

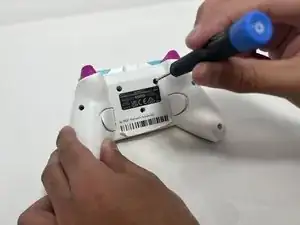

Use a Phillips #000 screwdriver to remove the seven 9 mm screws that secure the back shell.
-
-
-
Twist the thumbstick to remove it from the motherboard. Repeat this step if both thumbsticks need to be replaced.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
