Introduction

The action buttons should be replaced on your PDP Rematch Advanced controller if they take more effort to press down. If you need to replace any of the action buttons, separate the front housing shell from the motherboard with this guide.

  1. PNjBXovNQUSyULQo
    PNjBXovNQUSyULQo
    xCRpi3TmkyZdoUHH
    TbN5joxno22ZwlLG

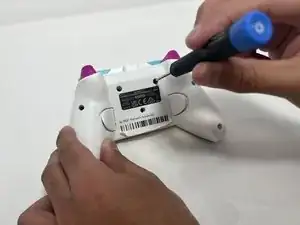

    • Orient the controller so the back side is facing you.

    • Use a Phillips #000 screwdriver to remove the seven 9 mm screws that secure the back shell.

  2. WWtPFXrvJmydy4Jx
    WWtPFXrvJmydy4Jx
    pbxOnHtGACybNdTG
    htSPDAg6ehqeUQZc

    • Pull apart the controller's front and back shells with moderate force.

    • Orient the controller so that the front shell is facing the floor to prevent the face buttons from falling out.

    This does not work with mine. Something is holding it together near the head jack plug. I've triple checked that I removed all screws.

    Maxime Chamberland -

    I finally separated with some plastic tools. The tabs at the bottom really hold it together

    Maxime Chamberland -

  3. 5ED4OtH2jwoFQnVC
    5ED4OtH2jwoFQnVC
    mrGvnIJQnyttKH4g
    qQojdJKPNxwAfKUd

    • Peel the rubber gasket off the back of the action buttons.

  4. 1XQNWHgbgano1kR1
    1XQNWHgbgano1kR1
    uHZIhBPIdd2koltX
    JxZibEH4KiWcFxvF

    • Push all the action buttons out from the front of the shell.

Conclusion

To reassemble your device, follow these instructions in reverse order.
