OnePlus One Front Facing Camera Replacement

Step 1

Remove the SIM tray.
Using a plastic opening tool, carefully separate the back panel from the main body assembly of the phone. Be extra careful around the SIM slot or other weak areas.
You may encounter some resistance due to hidden locking clips around the inside edge of the phone. Not to worry; just move in one consistent direction around the phone as opposed to jumping from spot to spot!
Top to bottom, left to right, clockwise or counter clockwise, once we make it about half way around the device, the panel is easily removable by hand.
It is of utmost importance that you do not attempt to free the battery from the device at this point without proceeding to the following step! This is an integrated battery that can easily be damaged or destroyed if the proper steps are are not taken.

It doesn't mention you have to remove SIM tray first.

I used the #0 for the rear panel screws. The #00 is too small and will slip, stripping the screws if you're not extra careful.

anonymous 2668 - 18/09/15

where can i buy the battery??

Shaun Davis - 22/09/15

Has anyone answered this? I am looking too.

Elie Daou - 05/10/15

They sell it on here, although I found mine on eBay.

Roger - 19/10/15

Aliexpress for $9 (original)

David van Ballegooijen - 23/12/15

The last three hidden screws are a !&&* of a time consumer to remove. probably you would need only a certain type of tweezers - I got stuck at midway and now I cannot get go have my phone detect the sim card either probably because the six screws are removed. I can now turn the phone back on but with no service or wifi connections are detected. This phone is a disaster!

Manan Shah - 27/09/15

Ivdid that too but son in law found I had reinstalled sim card in backwards or upside down.

wildcat75666 - 20/07/16

Where did you buy the micro USB piece? Thanks a lot!

Davide Rota - 12/10/15

EBay. I bought new battery cause old ibe was dead would not charge. Just ordered new cables fit 9.00 something free shipping. Anyway hope this fixes problem cause new battery did not fix problems.

wildcat75666 - 20/07/16

I was able to open going from the microusb slot and working my way around. The corners are tough, though.

Roger - 19/10/15

in my phone the battery was glued with double sided adhesive tape, only on the right side. I pried the left side up first, and carefully removed the battery. to lift the battery I used first used a suction cup(?) followed by a plectrum like tool to lift te battery, and keep it lifted

Eelco Busch - 07/11/16

A word of caution: the back panel is harder to remove than you might think. Especially because you may be removing the *screen* by mistake. When you have a "grip" with the tool make sure the metallic border is not coming off with it, and when you have removed enough to be able to lift the panel, make sure it isn't attached by ribbons - in that case you've been removing the screen. A good idea is to gently press your finger nail against the weak plastic located between the back and the SIM slot, and going up and down and sideways until you hear a click. Then you can start from there with the opening tool. As recommended be very gentle around the SIM slot.

Menahem Julien Raccah Lisei - 01/07/17

Where do I get the plastic opening tool?

Julie Hejducek - 18/03/18

Step 2

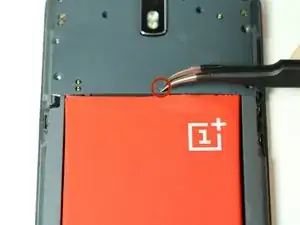

Using a pair of tweezers, remove the plastic plugs.
Once the hidden screws are revealed, use a PH #00 screwdriver to remove the three 3.175mm screws.
Use the PH #00 screwdriver to remove the remaining six 3.175 screws.

The plugs are annoying to open for the first time. They're shaped like little pegs, but I was able to poke at them with screwdrivers enough to open.

Roger - 19/10/15

the best spot to start prying the cover open is at the cable outlet for the power/volume buttons (careful not to dameage the wires)

Marius137 - 17/09/16

A needle works best to remove the plugs.

Stan Barton - 29/04/17

I second this. I used a sewing pin and the plugs came out in no time!

Liam Ong - 11/05/17

Be careful not to displace the rear camera when replacing the motherboard cover.

Liam Ong - 16/08/17

when I lifted the motherboard cover the battery cable stuck on it so that I lifted both, the plastic cover and the cable - step 4 below was not necessary to perform. Be careful!

Rene Hommel - 10/09/17

anyone know what is the 6 orange screws in step 2 are called?

e.g. M2 x 2

I lost some screws.

So where can I buy some replacement of these screws?

Tyler Durden - 04/07/19

Step 3

Using a plastic opening tool, gently pry up the black plastic cover and remove it from the device.

At the top right of your device you see a white dot. That white dot is the warranty sticker. You need to take off that sticker in order to get to the screw that lies underneath. Then unscrew that screw. Otherwise you will not be able to pry off this cover.

Anke - 13/07/20

Step 4

After we have removed the motherboard cover, we notice that the battery is intact and has a black ribbon attached to it, which is mounted on the logic board.
Using the spudger, carefully begin to lift the the battery up from the side opposite the ribbon. Be aware that there is high-grade adhesive holding the battery in its bay, so proceed with caution.
This battery is not encased in a hard shell so it is soft and malleable. Caution must be taken during removal so as not to cause permanent damage.

This took a ton of force to remove from the adhesive!

Also I was able to take off the cable before removing the battery.

Roger - 19/10/15

Is it OK to use the battery if I bent it during removal? I had to 'iron' it flat, but I think it might still be useable...

Henry Annand - 30/12/15

the best way to remove the battery is to lever the left side up from the bottom and remove it from the glue with an old credit card

Marius137 - 17/09/16

Do this! it comes up very easily this way. All the adhesive is on the right side.

Daniel ONeill - 03/11/16

Great suggestion with a card to remove the battery!

Jeff Mack - 01/08/17

Thanks for this trick saved me a lot of time

George P -

I second Dangerous Picture's suggestion. I found it very helpful to remove the ribbon from the dock (it was easy to do) before trying to remove the battery.

Stan Barton - 29/04/17

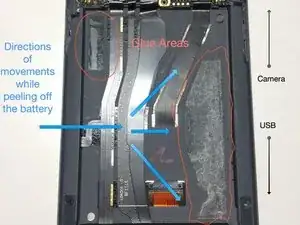

on my phone extensive use of glue was concentrated on just one side (right hand side). Not impossible to remove, little tricky

Rene Hommel - 10/09/17

I mistakenly removed the battery with force, and the back peeled and brought out smoke, seemingly like it's gonna explode. Help !!!

warys Moreno - 29/03/20

Hola, después de cambiar la batería el telefono creo que sigue identificando que está gastada porque me dura igual que antes- He intentado un código de reteseteo pero me da error. Hay alguna forma de resetear la batería? el mío es el modelo 9 pro

María Torres - 26/11/24

Step 5

Once the battery has been freed, we use the ever handy black spudger to pry up and free the battery ribbon from its dock.
You can disconnect the battery before freeing it to make removal easier.

For step 4, the connection to the battery should always be done as soon as possible so after removing the back plate to the board would be ideal.

Otherwise, very thorough so far!

Duc - 06/04/16

Thought I was going to snap my battery in half but patience and slight pressure did the trick.

Also agreeing the battery should be disconnected as soon as possible.

Rasmus Beck - 06/06/17

From where do I procure a new battery for it?????????

Roderick Edric Chandra - 17/08/17

très bon tuto ,aucun problème si vous suivez la procédure ,bravo et merci

antoine v - 06/11/17

There are several connectors to the motherboard. In the picture above, one connector above and, below the screw thread, three more connectors. Be careful to reconnect any connectors accidentally disconnected while disconnecting / removeing the battery. In my case the connector shown at the top of the row came unconnected.

Jörg Thiesemann-Bihn - 19/02/18

salut, pour moi le connecteur à la nappe était collé au cache en plastique qui couvrait la carte mère … mais le reste s’est bien passé.

Merci pour le tuto !

Didaf Wazir - 26/06/18

Thanks Buddy, I replaced battery of my one plus one and when I switched it on, touch was not working. It was heart sinking panic moment...Then I came across https://forum.xda-developers.com/oneplus... post, simple trick of sliding piece of paper below battery solved and infact improved the touch response. Thanks !

Radhakrishna Shetty - 15/11/18

Kifch nikmandha

asadzoya388 - 25/01/19

When putting in the new battery, the battery ribbon cable did not line up with the dock on the motherboard, on the replacement battery I ordered from iFixIt. I was able to carefully peel back the foil covering ribbon cable, align the cable, then press the foil back in place. Now, everything seems to be working.

I P - 17/05/19

Step 6

After the battery has been removed, use the spudger to disconnect the remaining ribbons.
Notice that there are two side ribbons, one on each side (volume up/down and power), and a top ribbon as well as those from the battery compartment.

the digitizer ribbon connector has a small plastic piece that blocks the connector from being removed through the slit. make sure to remove it (simple push with an opening tool). then you can remove the connector/ribbon cable.

Michael Jubran - 21/06/15

All the ribbons came off easily after I found them, save for the volume buttons. Iended up tearing the ribbon trying to maneuver it out with the motherboard itself. Do you guys have any tips for removing the volume control ribbons? They seem to be held down by tiny extrusions in the phone.

Crazy Joe - 02/12/15

Use extreme caution with the side ribbons. I've just destroyed my Volume Buttons as I tried to get the ribbon off.

adenoid2 - 31/12/15

Another method for the side ribbons (power/volume) is desoldering the connectors - since I couldn't find any promising way to detach the buttons without damage I took this route and had success. Also note that you do not need to remove the mainboard and cameras for replacing the screen - a slight tilt should be enough to access the top ribbon (which belongs to the display assembly and has to be removed) so the side ribbons can stay in place.

Florian Knodt - 11/01/17

I removed the side ribbon for the volume buttons is really easy by using the plastic tool between the two volume buttons in direction from up (backside of the phone) to down (screen of the phone). Trying to remove it from the volume down direction end of the cable almost destroyed the volume down button, so don’t try it

Hristo Kovachev - 12/11/17

I just had to replace my screen, I skipped the removal of the side ribons and that worked perfectly. So don’t consider this step as mandatory to a screen replacement.

Erwan Velu - 04/01/19

Step 7

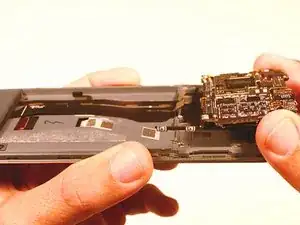

After removal of the ribbons, there is one final screw. Once you have removed this, the motherboard easily pries out with spudger.
This is the only screw that differs in size. This screw is a philips 00, 3.00 mm. in length.

After removing the final screw that holds the motherboard in place, do not just lift away the motherboard. The antenna is fixed to the back of the motherboard in the bottom right corner. Lift the motherboard from the top, leaving the bottom part of the motherboard (the part that is nearest the battery) close to the phone body. The antenna is a black wire that runs from the motherboard around the right side of the battery recess. It is held to the back side of the motherboard by a small, round, brass-coloured connector. It can be unclipped from the motherboard using a small pair of tweezers.

Blenk - 06/08/15

There is a little tape in the battery box keep the antenna in place.

You can remove the tape and have a few centimeters of antenna free in case you accidentally disconnect it.

It is !&&* of a fiddeling to connect it again but it is feasible

Jan Seidel - 06/12/15

The final screw is a Phillips 000

Jan Seidel - 05/12/15

After my second assembly replacement I realised it is not necessary to completely remove the motherboard. Just lift it from the top enough to navigate the top ribbon on the assembly through the chassis and therefore avoid any possible damage to the power and volume flex.

mlin75 - 06/01/17

I encountered some resistance when lifting up the motherboard (and putting it back in later), from the corner near the sim card slot. Either because of a manufacturing defect or the plastic deforming due to age, the side of the PCB was snagging against the chassis. Got it out eventually but you have to be careful.

John Smith - 21/07/20
