Nintendo Wii mini Motherboard Replacement

Written By: Kristin Anderson
  • Comments: 2
Nintendo Wii mini Motherboard Replacement

Difficulty

Moderate

Steps

14

Time Required

35 minutes - 1 hour

Introduction

This guide details the replacement of the motherboard on a Nintendo Wii Mini. The steps shown in the images are of the disassembly process, and the replacement and reassembly are as simple as completing the steps in reverse.

An electrostatic discharge bracelet is recommended when handing delicate electronics.

A motherboard replacement may be necessary when these symptoms occur in your Wii Mini : Wii does not turn on or will not boot up after power supply is found to be working.


  1. NUhBkf2IQM6yCYKR
    NUhBkf2IQM6yCYKR
    JGOX1DkubbGAcdZ5

    • Remove the two rubber feet at the back of the console to reveal the hidden screws.

    • Remove the four 6mm Phillips #0 screws.

  2. Fe2taJ1YAZ5LlWCC
    Fe2taJ1YAZ5LlWCC
    gQZe24EOKo6uLmpi
    eEJqqy22dpNSn3HE

    • Turn the Wii mini right-side up. Then run a plastic opening tool around the middle edge of the console to loosen the top piece.

    • Gently lift the top piece of the console and set it aside.

  3. WEuJwFqqSQJcEaAB
    WEuJwFqqSQJcEaAB
    J2XAXjetHCYsYRXW

    • Turn the Wii mini around so that the back of the device is facing you.

    • Using a Phillips #0 Screwdriver, unscrew the two 6mm screws on either side of the fan piece.

    • You may need to use tweezers to pull out the screws once they are loosened.

  4. OxuwPrDZkicHwgBN
    OxuwPrDZkicHwgBN
    O3J1YbxQRVOCDAVV
    PTfcVdnBsMrI4fDj

    • Using your fingers, gently pull the top of the pin connector straight up to detach the fan from the console.

    • Do not wiggle the connector or cable while removing. This may cause the connector to come loose

    • Remove the fan piece and set it aside.

  5. EIjkLNyCyedcLlOs
    EIjkLNyCyedcLlOs
    6iSGxYPsooXXWaOF
    tPe4YxoPuul1IkQu

    • Using your fingers, slide out the blue ribbon cable from the the top of the power board.

    • Using a Phillips #0 Screwdriver, unscrew the two 4mm screws at the top and bottom of the power board.

  6. NvwDXSXNFDjmFuur
    NvwDXSXNFDjmFuur
    Ek3frHNrWawca6qx

    • Using your fingers, gently pull the pin connector to disconnect the power board from the disc drive.

  7. 13E6ypWObn1LL6BL
    13E6ypWObn1LL6BL
    1oQYqjWVlSrtfdKj

    • Lift the power board from the console and set it aside.

  8. SUVnb2DNNryKhKRM
    SUVnb2DNNryKhKRM
    eTcnfVTF2cgLV633

    • Using a Phillips #0 Screwdriver, unscrew the four 6mm screws.

  9. ufxJyorwXECeo2E3
    ufxJyorwXECeo2E3
    ILVqi25mX2DN1TWP

    • Lift the disc drive out of the console and set it aside.

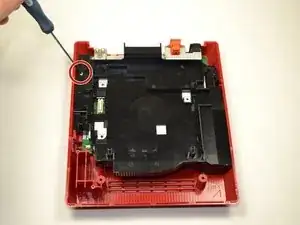

  10. GBrrGBstyL5Aj5Xq

    • Using a Phillips #0 Screwdriver, unscrew the 6 mm screw at the top of the black tray.

    There is actually two additional screws at the bottom of the tray

    Serhii Mukha -

  11. QQ45ZnoOxGrktGAd
    QQ45ZnoOxGrktGAd
    oCShPMvyopZ4HVIZ
    OfOWCbLPpGGa1W3w

    • Using your fingers, pull the black plastic tray toward you to loosen it from the console.

    • Make sure the black square pieces are separated from the metal square pieces before trying to lift out the tray.

    • Once separated, lift the plastic tray out of the console and set it aside.

    • Trying to remove the tray before it is completely loosened may result in damage to the metal square pieces.

  12. xYBwnxsR4EXxRDGu
    xYBwnxsR4EXxRDGu
    bfQuwOBTcMAGBlrV

    • Using a Phillips #0 screwdriver, remove the eleven 5 mm screws holding the silver metal plate to the console.

    • These screws are indicated by small arrows on the metal plate. (See Photo #2)

  13. mwuoXKScKCkqxGHJ
    mwuoXKScKCkqxGHJ
    uJPhFQarGJknhdIa

    • Lift out the metal plate and set it aside.

  14. tGUfYqHijqqOsdVq
    tGUfYqHijqqOsdVq
    WAyeHNqUFyRXCT5Q

    • Lift out the motherboard and set it aside.

Conclusion

To reassemble your device, follow these instructions in reverse order.
