Nintendo Game Boy Advance SP Buttons Replacement

Written By: abeleko
  • Comments: 3
Nintendo Game Boy Advance SP Buttons Replacement

Difficulty

Moderate

Steps

5

Time Required

10 minutes

Introduction

This guide will show how to effectively disassemble the Game boy advance SP and gain access to the logic board, all the buttons (trigger buttons a common problem), the battery, and the speaker.

  1. AJZHg3aQXD2WlkXS

    • Game Boy Advance SP (Nintendo 2002)

  2. vtcNNRQU1QEOCgxT
    vtcNNRQU1QEOCgxT
    FOkvGFJUpLin6dhJ
    cQKhKW1C1wVuYQDJ

    • Using a Phillips 000 driver, loosen the screw securing the battery compartment.

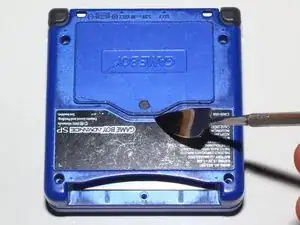

    • Using a metal spudger, gently lift the battery compartment by placing the edge just under the screw. The screw will come off with the cover as it has a washer holding it in place.

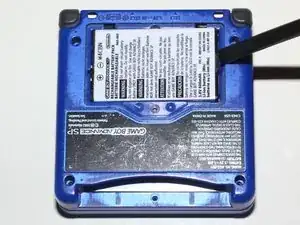

    • Remove battery using a plastic spudger or fingernail.

  3. qERsVRKM31mgrVKR
    qERsVRKM31mgrVKR
    m1IdXW3NqxyNfGoR
    hbbtgcEI3gc1bs62

    • Back cover contains 4 Gold Tri-Wing #0 screws (Red circle), and 2 Silver Tri-Wing #0 Screws (Yellow circle).

    • Remove screws and lift back cover off giving access to motherboard.

    • Motherboard is secured by 3 Phillips #0 screws.

    • Triggers L&R (Orange box), and Power Switch Piece (Yellow box) are found affixed to the rear cover.

  4. UHTxPUIIxwJpOHbg

    • Flip the motherboard over very carefully as not to damage the display ribbon.

    • You now have access to the device speaker and buttons.

  5. RISavBitZ5KRN4aA
    RISavBitZ5KRN4aA
    FxZWwANuUmlGhDeB
    Ug3aMcVLqjNnCBE4

    • Carefully using fingers, detatch display ribbon from its socket. This ribbon is especially hard to remove due to the angle in which you'll need to remove it.

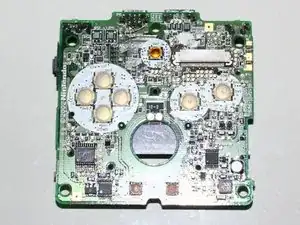

    • You can now access the motherboard and the input buttons freely.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

abeleko

Member since: 11/11/11

553 Reputation

3 comments

It appears that the tri-wing screw heads are not really Y0 - certain kits that have Y0 bits, like the Harbor Freight Electronics Repair Kit, did not work for me. I wonder if it's 00, or something metric. If you're shopping, beware of interchangeable bits that are too short or shafts that are too fat, as well.

AySz88 -

Oh, the "Y1" screwdriver that the page "recommends" (sells) in the display at the bottom of the guide is definitely wrong as well. Since Y0 was too large, Y1 definitely wouldn't fit.

I ended up getting a 5-pack of special-made screwdrivers (all of the same one).

These work fine, even on a couple of screws that I stripped a little while trying the aforementioned Y0.

I suspect it's some standard size, but I have no way to tell for sure. The markings on it are "360/(Y)x50" but the only standard thing I can decipher from that is that the "x50" might refer to the 5 cm shaft length. :/

Cheapest price I found for a single driver is about $2-3, or $6 for the 5-pack I got.

AySz88 -

Apply WD40 with a cotton bud on the motherboard buttons can fix them. I just fixed my 'A' button by this way. I already fixed a mouse button with a drop of wd40 years ago, and it still work perfectly today.

Nicolas -
