Ninja Foodi SP101 Heating Coils Replacement

Written By: Griffin Peterson
  • Comments: 1
Ninja Foodi SP101 Heating Coils Replacement

Difficulty

Moderate

Steps

10

Time Required

5 minutes

Introduction

The interior heating coils in your Ninja Foodi SP101 are mainly used for the toast and broil features of the oven. The coils reach extreme temperatures, so ensure that they are completely cool and device is disconnected from power before continuing.

  1. UxblIxJeMQe3ypv1
    UxblIxJeMQe3ypv1
    Zf3TFjTmJtK3lLDy

    • Use a TR10 screwdriver to remove the four 11mm screws holding the black lever bar in place.

  2. IwYS5sBJgP3SMLR1

    • Remove the black lever bar.

  3. ofy1pbhhVRNHqS6i

    • Use a Phillips #1 screwdriver to remove the three 8mm screws on each side of the back panel.

  4. 6wNQesiRa2kTQ3J4
    6wNQesiRa2kTQ3J4
    r3CJCX1yDa13W6dD

    • Flip the device upside down and open the bottom panel.

    • Remove the five 8 mm screws on each side of the interior using a Phillips #1 screwdriver.

  5. frPxJEWA6pBYuSXG
    frPxJEWA6pBYuSXG
    1gEXfH3lct1wOcWL
    iUR2DB4ecmbJXiVj

    • Remove the control side panel.

    • Lift the siding outward to remove the metal tab connection on the bottom.

  6. PwWbluNUFQLQLdOK
    PwWbluNUFQLQLdOK
    spOUbMnrwmmQPoph

    • Lift the handle and pull the side panel out.

    • Remove the handle side panel.

  7. ixFVOyRIrIbr2kUV

    • Using a Phillips #1 screwdriver, remove the six 8mm screws on inside of the handle-side panel.

  8. MYKvNWJWuFKiKXeT
    MYKvNWJWuFKiKXeT
    QaFxlAmFGEHqKaYN
    QhWEIeLmrAcsbSha

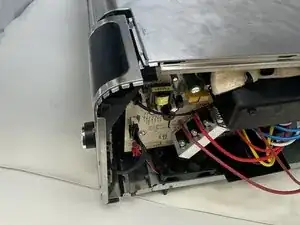

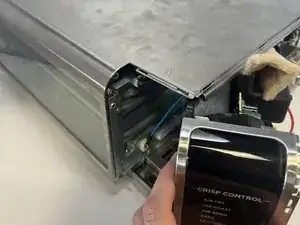

    • Flip the device to the control panel side.

    • Remove the single 10 mm screw with a Phillips #1 screwdriver.

    • Remove the control panel by sliding it up and out.

  9. dFN1PbFCAUVUFRpF
    dFN1PbFCAUVUFRpF
    DT6Fo4jXNY6etDbu

    • Remove the four 8 mm screws behind the control panel using a Phillips #1 screwdriver.

    • Remove two more screws located behind the motor.

    • You do not need to remove the motor.

  10. Qj1XZpiAyruyTmnw

    • Lift the coils up and outward for removal.

Conclusion

To reassemble your device, follow these instructions in reverse order.
