Nespresso U inner coffee spout replacement

Written By: VauWeh
  • Comments: 4
Nespresso U inner coffee spout replacement

Difficulty

Easy

Steps

8

Time Required

25 minutes

Introduction

If the coffee no longer comes out of the spout but seeps into the capsule collector, the inner coffee spout is very likely defective. Unfortunately, the retaining tabs of the inner coffee spout often break off on this model, they are too weakly constructed. The repair is very simple and the replacement part is very inexpensive.

  1. TgmEuVFV5nBUMGKZ
    TgmEuVFV5nBUMGKZ
    XuxrgODM2k2igwGY

    • Insert an opening tool into the gap between the coffee spout and the side panel on the right side. Push the side panel away a few millimeters and push the tool down until the side panel at the front edge comes loose with a loud crack

    • Repeat on the left side.

  2. JPvMsSyHOYCPZnuQ
    JPvMsSyHOYCPZnuQ
    eavt31vIMoic12mx

    • Push the side parts apart at the top.

    • Lift out the coffee spout, it is held in place by detents.

  3. CwhuYRUbQWUqbBp2

    • Plug in the connector and turn on the machine.

    • Push the slider for the capsule forward until the motor moves the brewing unit forward, when it is half way, then gently push the slider back so that the brewing unit stops half way.

    • Pull the power plug.

  4. pyRZO5SQD6iJBldI
    pyRZO5SQD6iJBldI
    KRM6HONjGGPBqKUX

    • Now you can lift out the defective inner coffee spout. Its retaining tabs are probably broken off, so this should be quite easy.

  5. leJPVxxvaaXrkbHW
    leJPVxxvaaXrkbHW
    MI4eEjlbJUbpT5YM

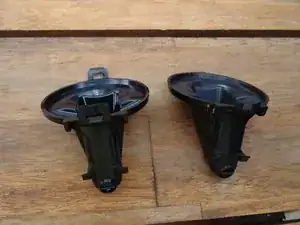

    • The two broken tabs are clearly visible. In the second picture, the old and the new part are next to each other.

  6. AONlraS3XskbYKMi
    AONlraS3XskbYKMi
    koDkLCxt1O4CTjJq

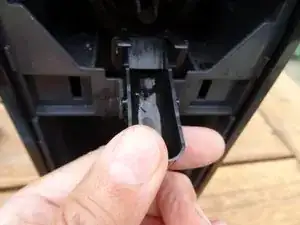

    • Take the opportunity to clean the spout rocker and all internal parts.

  7. SflWtoCkQCoVKUKj

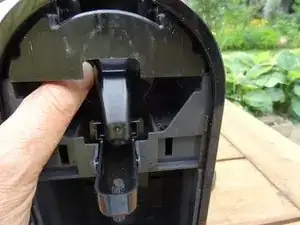

    • Press firmly on the new coffee spout.

  8. Z5V3kVnRLQAvZkUc
    Z5V3kVnRLQAvZkUc
    HlKKWinMgYEJsCSK
    qVhY5AfYHDJII2sx

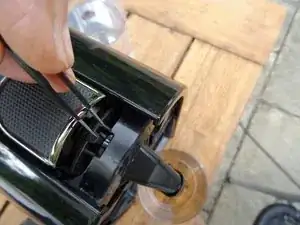

    • The broken upper flap is still present here. Lift it out with tweezers.

Conclusion

Work through the steps in reverse order to reassemble your device.
