MSI MS-1782 Battery Replacement

Written By: Enmanuel Mota
  • Comments: 0
MSI MS-1782 Battery Replacement

Difficulty

Moderate

Steps

15

Time Required

25 minutes

Introduction

This guide will show you the steps necessary to replace the battery in the MSI MS-1782 laptop. The battery may need to be replaced if your laptop does not retain any charge, or if it does not charge at all. Check the troubleshooting page for more information.

  1. TbdswiABxLjFBLoT

    • Remove five 6.6 mm screws from the edges of the bottom cover using a JIS #1 screwdriver.

    • Remove one 5.6 mm screw from the center of the bottom cover using a JIS #1 screwdriver.

  2. WT2XWnGjhghv2DOE
    WT2XWnGjhghv2DOE
    bjGFX52eOELaxfNj
    1tx14ClUYTix2lRQ

    • Use an iFixit opening pick to unclip the bottom cover.

    • It is ok to run the picks along the edges since there is nothing connected to the bottom cover. It is easier to start from the sides and then work your way forward.

    • After unclipping the bottom case, pull from the back of the laptop upwards using the lip of the bottom case as a handle.

  3. LiUEvSONPLrODenv
    LiUEvSONPLrODenv
    LVjuCtNVD4UiN2ea
    HSwqAc5pGWUjUCZe

    • Loosen the captive screw on the left side of the left fan using a JIS #2 screwdriver.

    • Remove the 5.1 mm screw on the right side of the left fan using a JIS #2 screwdriver.

  4. SLXFWScRiV2THntJ
    SLXFWScRiV2THntJ
    OFH3DDaEyrEaE6pJ
    2rVOqSNMYuTNUhyO

    • Gently detach the fan connector.

    • Remove the fan by lifting it out of its housing.

    • Be sure to handle the wire delicately; if not it will break.

  5. eF4CXrp1jarSMqQR
    eF4CXrp1jarSMqQR
    1FunGq2qcD1QsaDX
    Q2AESHnSqD5FDSWS

    • Loosen the captive screw on the top of the right fan using a JIS #2 screwdriver.

    • Remove the 3.6 mm screw on the bottom of the right fan using a JIS #2 screwdriver.

  6. J1ZxdsXaoE1cxxYw
    J1ZxdsXaoE1cxxYw
    SuOVxsNXEHZQAyJI
    MUPgqRQSq2ts2htv

    • Gently detach the fan connector.

    • Remove the fan by lifting it out of its housing.

    • Be sure to handle the wire delicately; if not it will break.

  7. f3WARPLhHFBSeOC1
    f3WARPLhHFBSeOC1
    PRwnoy4NlxSNYcOO
    ePu2UV4CgrDMq1oS

    • Loosen the eight captive screws holding the heat sink in place using a JIS #2 screwdriver.

    • Be sure to follow the numbers that are next to the screws on the heatsink. This evenly removes pressure on the components when removing the heatsink.

  8. AGH6HqRMEQIJSyRQ
    AGH6HqRMEQIJSyRQ
    lqT6QvjPEDOk6jx5
    NbFLlpDJ3qfjLMbB

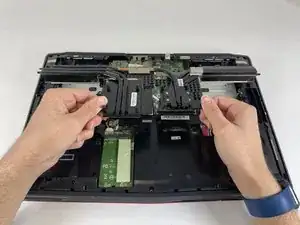

    • Gently lift the heat sink and then pull forwards towards you.

  9. bFxP5XqcZLECbnaH
    bFxP5XqcZLECbnaH
    v2IcF2rc55kdTdDi
    lESvkJjlSteZyLr3

    • Remove the four 5.5 mm screws holding the battery frame in place using a JIS #1 screwdriver.

    • Gently disconnect the cable connecting the M.2 caddy to the motherboard.

  10. kLfupxI6wut5G1tf
    kLfupxI6wut5G1tf
    amhDoRFbwsVsUK6f
    gjwj1yXXeGUXPWhZ

    • Remove the 3.6 mm screw holding the M.2 caddy in place using a JIS #1 screwdriver.

  11. LsYdgsTLbcTeZMEp
    LsYdgsTLbcTeZMEp
    KkKNDLFaoytTaZOK
    4BubWxYAgRyxQEHQ

    • Gently disconnect the two blue ribbons.

  12. TvUJRch5fXmtHUsw
    TvUJRch5fXmtHUsw
    fMmWqbJeBreJobU5
    wbwgQhI1OpAHPEcO

    • Remove the 5.1 mm screw holding in the disk reader using a JIS #1 screwdriver.

    • Use an iFixit opening tool to push the back of the disk reader to push it out of the laptop's chassis.

  13. wsLO2vEctprSMMSE
    wsLO2vEctprSMMSE
    GymKHNVKxv5YmvDB
    bWneQfYeVAMcJmFZ

    • Gently pull the disc reader out of the laptop.

    • Lift the plastic cover and disconnect the cable connected next to the speaker.

  14. HAwIGBCamXIHxVnx

    • Remove the five 5 mm screws holding the frame in place using a JIS #1 screwdriver.

  15. YiAYIOSDiXFbSdWJ
    YiAYIOSDiXFbSdWJ
    tARCJYiFbXLtaq4n
    THHRsOgsh5RRvBXy

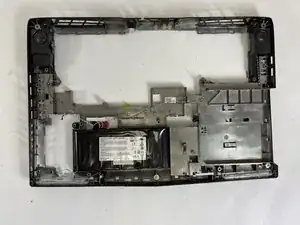

    • Pry up on the battery frame with an opening tool and unclip from the main chassis, working your way around the laptop.

    • To remove the battery, pry up on it to unstick the adhesive.

    • A little Isopropyl alcohol under the battery can help unstick it from the frame.

Conclusion

To reassemble your device, follow these instructions in reverse order.
