MSI GS70 Battery Replacement

Written By: Billy Faulconer
  • Comments: 6
MSI GS70 Battery Replacement

Difficulty

Easy

Steps

8

Time Required

30 - 35 minutes

Introduction

Use this guide when you want to replace and/or recycle your battery.

  1. SeOkxDnPi4QfViTt

    • Make sure that the laptop is turned off before starting.

    • Place laptop with the bottom plate facing up.

  2. NPa5hbnwXLEIPZvB

    • Remove all screws using the JIS #1 screwdriver.

    2 more screws right in the middle not marked in the pic. remember to get the one under the warranty sticker

    Dave D -

  3. jTNCULaxXHGNVSBb

    • Remove the back plate.

    • Locate the battery.

  4. gPwIfZDACrRf4iup

    • Locate the foil connector above the battery.

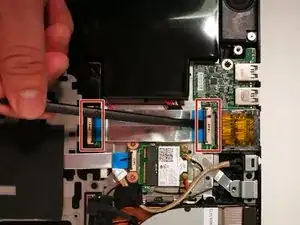

  5. bI5BuNwNNkJXPpC4

    • Flip up both black clips with your spudger.

  6. mIWe1IRJISaBPkyE

    • Remove the foil connector by pulling on the blue tabs.

  7. rBA1HVJb2AaJqUVR

    • After the foil connector is removed you will see an 8 pin connector.

    • Disconnect the 8 Pin connector.

  8. gR1fuJGGi1jAGJAf

    • Lift the battery and remove.

Conclusion

To reassemble your device, follow these instructions in reverse order.
