Introduction

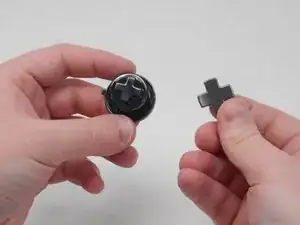

In this guide we have a MSI Force GC30 V2, model number/name is MSI Force GC30 V2 and we are replacing the D-Pad (Directional Pad). The D-Pad is a directional controller for the controller itself or it could also be used for various other inputs. The D-Pad may become damaged with prolonged use or rough play. The MSI Force GC30 V2 also has an alternate D-Pad that comes with the controller you can use with this guide. One symptom of a bad D-Pad is no game input when pressing the D-Pad.
-
-
Puncture the sticker where indicated using a screwdriver, then remove the 9.1 mm-long Phillips screw.
-
Remove the six 9.2 mm-long Phillips #0 screws.
-
-
-
Insert an opening pick in the gap between the front and rear case.
-
Slide the pick around the perimeter of the controller while prying until it fully releases.
-
-
-
Use blunt tweezers to disconnect both of the vibration motor connectors from the motherboard.
-
Carefully remove both the right and left vibration motors from their housing.
-
-
-
Remove the 7.1 mm-long screw with a Phillips screwdriver.
-
Remove the 7 mm-long screw with a Phillips screwdriver.
-
Carefully lift the motherboard out of its housing.
-
To reassemble your device, follow these instructions in reverse order.
