Introduction

This is a step by step disassembly of the MODRETRO Chromatic. Use this guide when modifying or replacing components on Chromatic.

  1. rbpxHOeP5ixUeUyh
    rbpxHOeP5ixUeUyh
    OGJMiJFPLIcXdKxb
    WUgeLNGV5pSo1Ai5

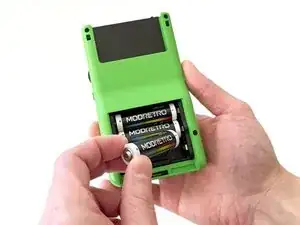

    • To remove the battery cover, push upward on the battery cover lock. The battery cover will pop open.

    • Lift the battery cover off and set aside.

    • Remove the batteries.

    • Always remove the batteries before working on your Chromatic!

  2. dDP4TFEOPexjIWCb
    dDP4TFEOPexjIWCb
    jCBZlNG4cQCynUFv
    DdJogJaMJN6rpjLl

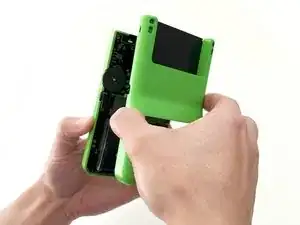

    • Remove the back shell screws (x4) using a Tri-wing Y1 Screwdriver.

    • The screws near the top are a different length than the screws near the bottom of the shell.

    • Remove the back shell by lifting away from the device.

  3. HHXY2NUgGSaKL5XU
    HHXY2NUgGSaKL5XU
    U1nVc2mbYUtdyFHa
    Ml2S6purePpa6TiT
    • Remove the menu button by lifting it off the post. It will remove with little resistance.

  4. 3ACBPcjppqNAW6F4
    3ACBPcjppqNAW6F4
    JDHxYyslUIlhEGqA
    AvbQWY1RKqSQBBuY

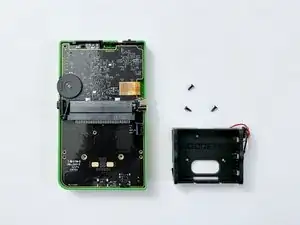

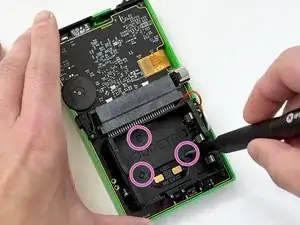

    • Remove the battery tray screws (x3) using a Tri-wing Y1 Screwdriver.

    • These are the only flathead screws in the device assembly.

    • Remove the battery tray connector.

    • It is helpful to press lightly against the PCB with your off hand while working the connector loose.

  5. ULAXsjiIwk16vZ1Y
    ULAXsjiIwk16vZ1Y
    UZWBkI6bvgRWhJCB
    UA2XPppIa2KJXrW3

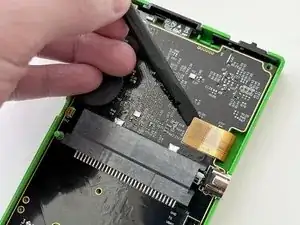

    • Remove the PCB screw (x1) using a Tri-wing Y1 Screwdriver.

    • Carefully lift the LCD screen ribbon cable from the PCB.

    • Handle with care!

    • Carefully remove the PCB from the front shell.

    • Lifting at a slight angle will help clear the headphone jack on the bottom more easily. This is also important during re-assembly.

  6. VwR6MIhZFi3ANjrb
    VwR6MIhZFi3ANjrb
    T4wLLnWGUsIJHsTc
    ICslHsZWCRRkoGWc
    • Remove the speaker module screw (x1) using a Tri-wing Y1 Screwdriver.

    • Carefully remove the speaker module from the front shell.

  7. ePqWNKGc2Sj5fn4L
    ePqWNKGc2Sj5fn4L
    dXwH3Mu2cyiTAuDV
    pFTxT6l2WUJsiFBf

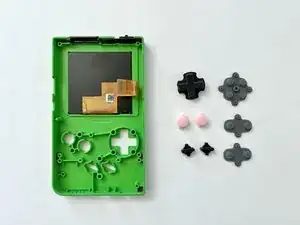

    • Remove the rubber button membranes (x3) from their pockets.

    • Remove the buttons and the D-pad from the shell with tweezers or by hand. If you flip the shell over, they will fall out freely.

    • The buttons will come out easily once the membranes are removed.

    • When re-attaching the rubber button membranes, be sure the positive features on the membranes seat securely into the pockets on the shell.

  8. I6dZd2cGbvUOC3IX
    I6dZd2cGbvUOC3IX
    MPsiqeekO2ZiNYWX
    OO6U4jQfYUjAgZAR
    • Carefully separate the IR window by gently wedging a plastic spudger between the IR window and the front shell.

    • Re-installing the IR window:

    • Note the side with the lip is inserted towards the front shell first.

    • Press in firmly until fully seated against the shell.

    • If the IR window fits loosely, the orientation is incorrect. The fit should be snug.

  9. vHIcCZPiKEp1LXIP
    • Remove the power switch by lifting away from the front shell. It will remove with little resistance.

    • When re-assembling the power switch, make sure it is inserted in the OFF position.

  10. OYCWRxveIln3pixx
    OYCWRxveIln3pixx
    H1L41J3YwxKFJrSE
    4A6gIlJFRGx5XfdJ
    • Remove the cartridge backer screws (x3) using a Tri-wing Y1 Screwdriver.

  11. ra1umatrFFYNwYpE
    ra1umatrFFYNwYpE
    wapCPipRL36bTBoG
    1VGEP2GwjThXT2T1
    • Remove the screws (x2) securing the latch cover using a Tri-wing Y1 Screwdriver.

    • Remove the door plate spring by fully depressing the battery cover lock. The spring should pop out.

    • Use a spudger if the spring does not fully dislodge.

    • Once the spring is removed, the battery cover lock can be removed without resistance through the underside of the battery cover.
