Lenovo V15-ADA Wi-Fi Card Replacement

Written By: Jacob Schorr
  • Comments: 0
Lenovo V15-ADA Wi-Fi Card Replacement

Difficulty

Difficult

Steps

9

Time Required

3 - 4 minutes

Introduction

This guide will show how to access, disconnect, and remove a Wireless LAN card from your Lenovo device.

  1. Y1nuV61TsLdGZVS5

    • Remove the 10 marked screws using a Phillips #1 screwdriver bit.

    • M2.5 × 7 mm, Phillips-head (6) (RED circles)

    • M2.5 × 4 mm, Phillips-head (4) (ORANGE circles)

  2. ARnQtuQUeghUyewp

    • Remove the 10 screws from the back plate.

  3. raWXMOxLK4ORVVmw

    • After all 10 screws have been removed, insert a spudger between the bottom plate and the housing and slide across.

    • Repeat for all 4 sides until loose.

  4. BtoqD2qIMe4Mpitf

    • Pop off the back plate and set aside.

  5. IXssxqi1tXmxChhE

    • Remove the Black wire with your fingers or small ESD-safe tweezers.

  6. EUXFD6yL3wa4JNrG

    • Remove Grey wire.

  7. QTHSHMXmIMy2r4hd

    • Unscrew screw holding Wi-Fi card in place.

    • 1x M2 x 3mm, Phillips #1.

  8. NmTQsPtkhuHuls6V

    • Card will lift up after screw is out of place.

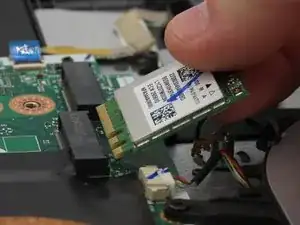

  9. mWHXYfqVciJYR2tL

    • Pull Wi-Fi card out of slot.

Conclusion

To reassemble your device, follow these instructions in reverse order.
