Lenovo V15-ADA Battery Replacement

Written By: Jacob Schorr

Comments: 0

Difficulty

Moderate

Steps

Time Required

2 - 3 minutes

Introduction

If your device isn’t charging or loses charge quickly, it may be time to replace the battery. Follow the instructions below to replace the battery in the Lenovo V15-ADA

Tools

Step 1

Remove the 10 marked screws using a Phillips #1 screwdriver bit.
M2.5 × 7 mm, Phillips-head (6) (RED circles)
M2.5 × 4 mm, Phillips-head (4) (ORANGE circles)

Step 2

Remove the 10 screws from the back plate.

Step 3

After all 10 screws have been removed, insert a spudger between the bottom plate and the housing and slide across.
Repeat for all 4 sides until loose.

Step 4

Pop off the back plate and set aside.

Step 5

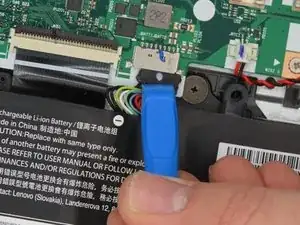

To start the removal of the battery, disconnect the ribbon cable connecting the battery to the computer.

Step 6

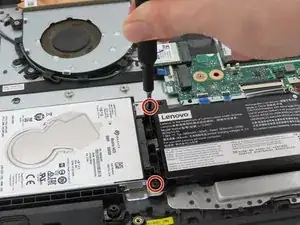

The battery is held in place by 3 screws. Use the Phillips #0 screwdriver to remove the screws that secure the battery.
M2 × 6 mm, Phillips-head, nylok-coated (3)
