Lenovo V14-IIL Screen Bezel Replacement

Difficulty

Moderate

Steps

9

Time Required

No estimate

Introduction

  1. gEttLQmVxgcFVQNl
    gEttLQmVxgcFVQNl
    ChAHCmSN6ZK1PRlk

    • Make sure the laptop is powered off and unplug all cables before beginning any repair.

    • Flip your laptop over and place on a flat surface so you can access the screws on the base cover.

    • Remove the six 7 mm screws from the back panel of the laptop using a Phillips #0 screwdriver.

    • Remove the four 4 mm screws from the bottom edge of the laptop using a Phillips #0 screwdriver.

  2. BE3BdyMabPDNScRf

    • Use an iFixit opening tool to pry apart the case by sliding it along each side of the laptop.

    • You may need to move the tool to different locations to fully release the back cover.

  3. 2OpKYWWtPND6DJbv

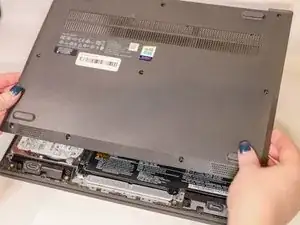

    • Lift away the back panel and set it aside.

  4. kfPgblE21dp1JaaH
    kfPgblE21dp1JaaH
    rxMeLUJoS2T3mgC6

    • Using a Phillips #0 screwdriver, remove the four 5 mm screws from the hinges of the laptop.

  5. sjpkvGKZaMXZGv2T

    • Lift up the latch and gently pull the display cable free.

  6. D6PvqTLXHRYReSmI
    D6PvqTLXHRYReSmI
    sM3XxYlGRE2u1MEF

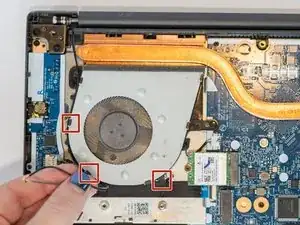

    • Using the spudger, disconnect the two wireless LAN cables (black and gray) from the wireless LAN card.

    • Remove the LAN cables from the three brackets on the fan.

  7. ubZvXuBhbVmTgiPt

    • Ensure that all cables and hinges are detached.

    • Lift the display assembly away from the base.

  8. 2WqKvRdSTkF2ZGaW
    2WqKvRdSTkF2ZGaW
    RIayX4dpZMEALrRO

    • Slide the cable hinge cover to the right.

    • Pull the part away from the screen.

  9. lugfytVnZnVkWjQr
    lugfytVnZnVkWjQr
    4hvks1bXASJVGyeC

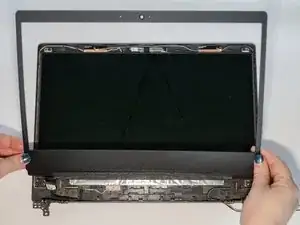

    • Use the iFixit opening tool to separate the bezel panel.

    • Slide the opening tool all the way around to loosen the bezels on all sides.

    • You may need to use the tool to gently loosen the adhesive tape.

    • Lift away the bezel panel.

Conclusion

To reassemble your device, follow these instructions in reverse order.
