Lenovo ThinkPad T410s Hard Drive Replacement

Written By: Jacob Murillo
  • Comments: 1
Lenovo ThinkPad T410s Hard Drive Replacement

Difficulty

Easy

Steps

4

Time Required

5 minutes

Introduction

This guide will show how to replace the hard drive of the Lenovo ThinkPad T410s.

  1. ESxyhMXepWMyjNXC

    • Flip the laptop over.

    • Push and hold the locking switch to the left.

    • Pull the battery out with your other hand.

  2. KqCCjRMf6UZnErqG
    KqCCjRMf6UZnErqG
    VxxjIRIPHFf5pIEv

    • Remove the single Phillips #0 screw that secures the hard drive cover.

  3. aNWapfZcXwVXYMrB
    aNWapfZcXwVXYMrB
    pojDALHIPgXynduV

    • Flip the black plastic tab out.

  4. 16lTFLLmulitNqEe
    16lTFLLmulitNqEe
    uuoRNSCTfPT5RbBH

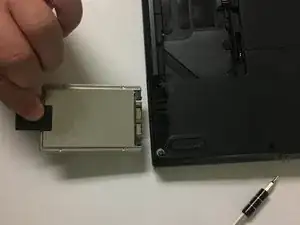

    • Pull the hard drive out.

    I don’t know how many videos I watched before finding this one. The only one that shows where the screw is located on my T410. Thank you for the simple clear steps to access and removed the hard drive.

    adoch -

Conclusion

To reassemble your device, follow these instructions in reverse order.
