Lenovo IdeaPad Gaming 3 15IMH05 Battery Replacement

Written By: Alex Diaz-Kokaisl
  • Comments: 2
Lenovo IdeaPad Gaming 3 15IMH05 Battery Replacement

Difficulty

Moderate

Steps

12

Time Required

15 - 30 minutes

Introduction

Use this guide to replace the battery in your Lenovo IdeaPad Gaming 3 15IMH05 Laptop.

For your safety, discharge the battery below 25% before disassembling your device. This reduces the risk of fire if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

  1. Kh5yLVr2ZoThAv2D
    Kh5yLVr2ZoThAv2D
    K1FWZxWAEnuuykiE

    • Use a Phillips #1 screwdriver to remove the following ten screws securing the back cover to the frame:

    • Six 7.6 mm PH1 screws

    • Four 5.7 mm PH1 screws

  2. BhYSiWgEjsZgPNbL
    BhYSiWgEjsZgPNbL
    cjqxsXlpGLeuSS6k
    bqdARbR1rjuCQKyv

    • Insert the rounded edge of an opening pick between the back cover and the frame in the lower right corner.

  3. pqZJtrnsaebYslrM
    pqZJtrnsaebYslrM
    JZw6tKeZlgiSVMsH
    3J1aEMvwWpMCefEY

    • Angle the pick to about 45˚.

    • Slide the pick along the front edge to release the clips securing the back cover to the frame.

  4. 4Xis5orc2kcpXXtu
    4Xis5orc2kcpXXtu
    1ZMv1CRdfiZRQrcZ

    • Insert the rounded edge of an opening pick between the back cover and the frame on the right edge.

    • Angle the pick to about 30˚ and slide down the right edge to release the clips.

  5. qPBFiDGn2ZXGnWSN
    qPBFiDGn2ZXGnWSN
    STxPIKxcVIG4MsKe

    • Repeat the same procedure on the left edge to release the clips.

  6. xY5Za4RjxjF1KOON
    xY5Za4RjxjF1KOON
    3axZX3piym533xDP
    BFkVXBGTAuexMevB

    • Lift the back cover up and remove it from the chassis.

    • During reassembly, this is a good point to power on your laptop and test all functions before sealing it up. Be sure to power your laptop back down before you continue working.

  7. TlNCOPCTCmFQ2rFP
    TlNCOPCTCmFQ2rFP
    vElOuICLkOrHGUFG
    thUwylHZ64lWfJgg

    • Use the pointed edge of a spudger to push each side of the battery connector to loosen it.

  8. X6ZI1mXCmcZ2dsfN
    X6ZI1mXCmcZ2dsfN
    hpqcIrrjG5dAeuNC

    • Use the flat end of a spudger to push out and disconnect the battery cable.

  9. kcPdouyPCUskO45k
    kcPdouyPCUskO45k
    vU1yhWUFn6yefwRl

    • Use tweezers, or your fingers, to remove the sticker covering the top right screw hole.

  10. jJNKZd3TwU5JQ2Qq
    jJNKZd3TwU5JQ2Qq
    BsMH1me3dVxLDZGn

    • Use a Phillips #0 screwdriver to remove the four 5.5 mm-long screws securing the battery.

  11. 2reZ2OMewHD3ycE2
    2reZ2OMewHD3ycE2
    BAtgdpcJZWwVEGCk
    PshlOlPjG2eJCSrt

    • Insert the flat end of a spudger between the battery and its plastic clip at the middle of the top edge.

    • Pry away from the battery to release the clip enough to be able to lift the battery out of its recess.

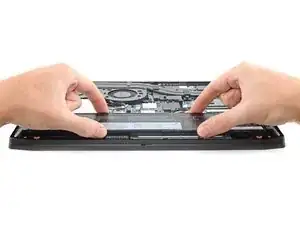

  12. CNnICdarG3KntctC
    CNnICdarG3KntctC
    lLemMOdSnntFyblK
    YyBiI4VUkHt6XnyE

    • Lift the battery straight out of its recess and remove it.

Conclusion

To reassemble your device, follow these instructions in reverse order.

For optimal performance, calibrate your newly installed battery after completing this guide.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
