Introduction

Screen replacement refers to the process of removing a damaged or malfunctioning display screen from a device and replacing it with a new one. This can be necessary for various electronic devices such as smartphones, tablets, laptops, and even some types of gaming consoles. The need for screen replacement usually arises when the original screen is cracked, scratched, malfunctioning, or otherwise compromised. This guide will show you how to replace the screen for a Kocaso M750B tablet.

  1. IMyqjRdUQj65KAfk
    IMyqjRdUQj65KAfk
    EOCsnsCgJssxUXDF
    5QHXxDcFLgEcF5Cy
    • Pry the edges of the tablet apart using an iFixit opening tool.

  2. cYbhPfA56Xdx3m1p
    cYbhPfA56Xdx3m1p
    lwIaIMgqfRqRcJ4n
    • Remove three 1.2 mm screws from the motherboard using a Phillips #000 screwdriver.

  3. 2sOnDxyCA5MVJYQ1
    • Disconnect the ribbon cables.

    • This guide will help you identify what type of ribbon cables the tablet uses and helps you on how exactly to remove different types of ribbon cables. The exact ribbon cables you are looking for are called ZIF connectors.

  4. MvHACBDcLD4KHQxu
    • Desolder the connections to the motherboard and the display.

    • When using the soldering iron, make sure to review the safety guidelines provided in the introduction. Work carefully and precisely to avoid any electrical discharge, puncture of the battery, or heating of the motherboard.

  5. 6GCPY4LIyLGTpVIY
    6GCPY4LIyLGTpVIY
    T2XUKjDwHsxZAEAU

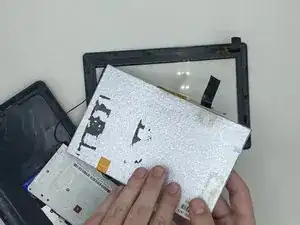

    • Remove the display by loosening the tabs surrounding it.

  6. JbSRpR4tJUBmlNAR
    • You now have independent access to the tablet's screen.

Conclusion

To reassemble your device, follow these instructions in reverse order.
