Innioasis Y1 SD Card Replacement

Written By: Dan
  • Comments: 2
Innioasis Y1 SD Card Replacement

Difficulty

Moderate

Steps

3

Time Required

5 - 10 minutes

Introduction

  1. cdECCToYdPjNOvuv
    cdECCToYdPjNOvuv
    ekHxk2uZXmiDiyx1
    1WV5texJmVRaBmoH

    • Use a pry tool and start half way up the left or right side of the MP3 player, working your way around the edge

    • Carefully lift the cover off and detach the connecting cable

  2. kOeDMBLfhZySkdWF
    kOeDMBLfhZySkdWF
    4HGeBwuKbLXZB63X
    yTqtDZTyucKoCLD4

    • Remove the 3 screws with a Philips #00

    • Carefully remove the Speak from its clasps with a pry tool

    • Carefully lift the board on the left side with the pry tool

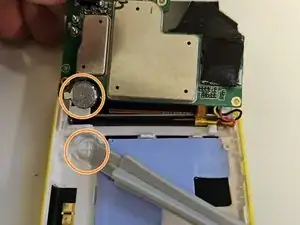

  3. DKxAmq4ivsRFncaA
    DKxAmq4ivsRFncaA
    ZCjWZ2fxCEnp1pJk
    jjaqNvEeBmlQIyG1

    • Carefully Lift the board up and towards the screen. You may need to lightly pry the battery out of its socket

    • Remove the tape

    • Slide the Micro SD card out of the socket

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Dan

Member since: 19/02/19

4312 Reputation

2 comments

Tired of waiting for a reaction to my questions above I bought a Samsung 512GB Micro SD Evo Plus UHS-I U3 SDcard. Maybe overkill, but very fast. the replacement of the card was a 5 minutes job. Now I am copying the contents of the old 128GB card to the Innioasis Y3 which will take hours I guess. I let everyone know if it all works fine.

P. Reuvers -

It works great. Only one small issue. The Innioasis Y1 shows that it contain 128GB, But he shows the correct used and available space, at this moment I used 143GB of the 512GB, more then the original Innioasis Y1.

P. Reuvers -
