Introduction

If the rear camera's glass lens is broken on your Huawei P20 Pro, then you should replace that lens. This repair is simple but requires patience and precision. For the repair you will first have to remove the small pieces of shattered glass, then clean the area and glue the new lens with double-sided tape or simply by making 2 points of glue. The goal is to avoid touching or damaging the camera and avoid scratching it.

  1. 6UCmgkgm3uMsp5aV

    • Start by placing your phone screen down on a clean, well-lit surface.

    • Wear safety glasses/goggles to protect your eyes from glass shards. This is very important.

  2. CDDZ6oAag5Vn6owE
    CDDZ6oAag5Vn6owE
    DFi1AHob23jewCkM

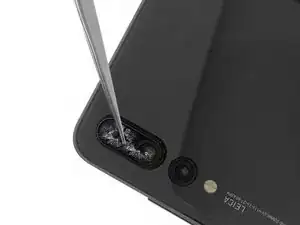

    • Start removing the tiny shards of glass with straight precision tweezers. Place the shards of glass in a container for safe disposal.

    • A heat gun or a hair dryer may be helpful for loosening the adhesive on the glass.

  3. diBkK4a6plYhkP2I

    • Once the area is well cleaned, apply 2 dots of glue (B7000) on each end on the back of the new lens.

    • If not available, place double-sided adhesive strips in the gaps between the cameras.

    • Reposition the replacement lens in the broken lens’ original location, being careful not to leave any marks or debris on the inside of the camera area.

    Quelle colle utilisez vous pour le collage ?

    julien haler -

    Where can I buy this back lens glass

    jax instructor -

    Will this work for the Huawei Mate 20 Pro?

    Jason Barker -

  4. EMTVVGvSLYdUywSe

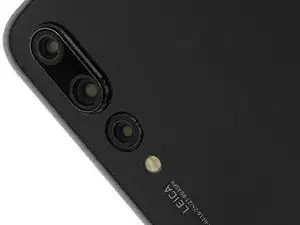

    • All done! You can take pictures again like you were able to do before.

    Quelle colle prendre ?

    manuelle_marque -

    Pour coller la lentille caméra du P20 Pro, nous pouvons vous conseiller la colle B700, vous pouvez l’acheter en cliquant ici.

    Merci

    cPix -

Conclusion

After replacing the camera lens, clean it with a microfiber cloth to remove dust and/or fingerprints.
