How toInstall a PCIe PCIe NVMe Gen3 module

Written By: Roberto
  • Comments: 0
How toInstall a PCIe PCIe NVMe Gen3 module

Difficulty

Moderate

Steps

6

Time Required

No estimate

Introduction

  1. HdcM2rNRirBHRFFA
    HdcM2rNRirBHRFFA
    2rwBvmpjEe2h4kED
    GRpsBbuSdI3ZbWCM

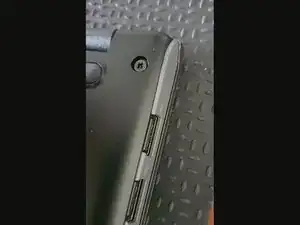

    • Remove all screws shown in the image

  2. P1JWVjOj42mGHobZ

    • The bottom screws are different. Save them

    • Find a new screw to fix the module

  3. 5QcxfCiTvuJVkeio
    5QcxfCiTvuJVkeio
    gDhNITkVRdHFuZWG
    SmpuaTLKVJEMmfNu

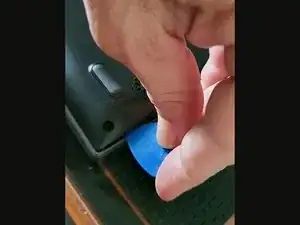

    • Open the back cover carefully using a plastic tool that will not damage the cover. .

    • Start at the bottom

    • Continue along the lid

  4. RgpcMxScUTxsKiAI
    RgpcMxScUTxsKiAI
    A2BqqMHSZyS6Bnn1
    BPEZTTTpWhFlLAJI

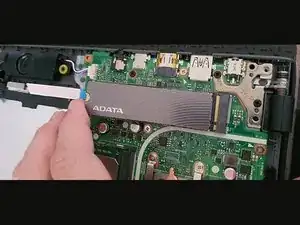

    • Install the new module in the corresponding slot

  5. FFUAWwFQrPTMFsPS

    • Use a suitable screw and screw in place

    • Done

    • Put the lid back on with light pressure

    • put the screws back

    • Done!

Conclusion

To reassemble your device, follow these instructions in reverse order.
