How to Use the Soldering Splint

Written By: Arthur Shi

Comments: 0

Difficulty

Easy

Steps

Time Required

2 - 10 minutes

Introduction

This guide demonstrates how to use the iFixit Soldering Splint to secure two wires for soldering.

The soldering splint jaws can hold wires up to 4 mm in diameter. It has two neodymium magnets on the bottom, allowing it to secure against ferrous surfaces. The splint is made of heat-resistant silicone.

Tools

Step 1

Even though the solder will bond your wires together, intertwining the wires beforehand will create more surface area, allowing for a stronger bond.

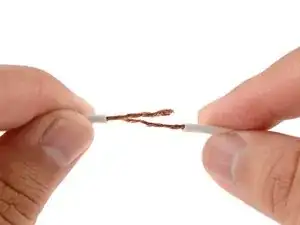

Twist the wires together. If the wires will be under strain, consider twisting them into a Western Union splice.

Step 2

Center the wire splice between the jaws.
Use your fingers or the flat end of a spudger to press one end of the splice into a jaw.
Be gentle if you're manipulating thin wires to prevent accidental breakage.
Press the remaining end into the other jaw.

Step 3

Your splice is secured in place! Use your preferred tool to solder the splice.
Make sure the solder fully saturates the splice. If the solder doesn't flow into the splice, apply flux to the splice and try again. If the flux didn't help, you may need to turn up the soldering iron temperature.

Conclusion

For more soldering guides and tips, click here.

Do you have soldering questions? Check out our Answers community!
