Introduction

Follow this guide to install a new battery in your Samsung Galaxy S22 Ultra.

If you haven't already, follow this guide to remove the battery.

  1. HRhJRRalK12YtoN5
    HRhJRRalK12YtoN5
    phqcZZGejBJRg6QO

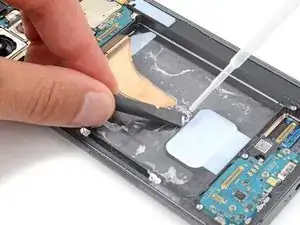

    • Use your fingers or tweezers to peel up and remove any large pieces of adhesive from the frame.

    • Apply a few drops of highly-concentrated isopropyl alcohol (greater than 90%) to the remaining adhesive.

    • Use the flat end of a spudger to scrape off all remaining adhesive.

  2. FfblyWbmTpOyiV4t
    • Apply a few more drops of highly-concentrated isopropyl alcohol (greater than 90%) to any adhesive residue on the frame and wipe it away with a microfiber or lint-free cloth.

  3. hDMCNUDWWspLL6l4
    hDMCNUDWWspLL6l4
    uvffgnvvbogeCCPw
    XY3ZwkQmUSoXGmh2
  4. BMpRSmEAGWaniaxt
    BMpRSmEAGWaniaxt
    I2KULyNPPD2BqlBD
    2yJnC4MfjqaXSADW

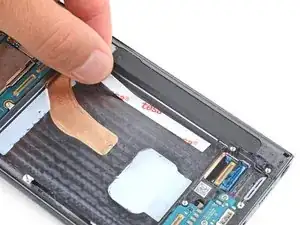

    • Lay a strip of tape onto the frame.

    • Use the flat end of your spudger to press down firmly along the whole strip to secure it.

    • Use tweezers to remove the liner from the strip of tape.

  5. WTdKwi5ktB4dqhtZ
    WTdKwi5ktB4dqhtZ
    iOmB5NC4MjEoiDhZ
    QTmbN6wbZAq6fJLP

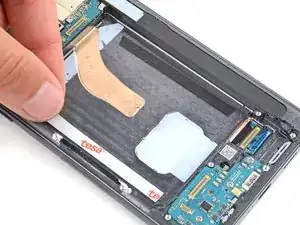

    • Repeat the previous step to apply the remaining strips of tape.

  6. AvmSU1rROHYvHg1A
    AvmSU1rROHYvHg1A
    2wvSfSPqTMlfcKRI
    mx2BYs5oggl3iJWa
    • While holding the battery above its recess, reconnect the battery cable.

    • This ensures the battery is properly aligned.

    • Lay the battery into its recess in the frame.

    • Press down firmly on the entire surface of the battery to secure it with the tape.

    • Disconnect the battery.

    • Return to your repair guide and continue reassembly.

Conclusion

For optimal performance, calibrate your newly installed battery after completing your repair.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
