HP Pavilion TPN-C125 RAM Replacement

Written By: Cesar Gomez
  • Comments: 0
HP Pavilion TPN-C125 RAM Replacement

Difficulty

Moderate

Steps

6

Time Required

10 - 20 minutes

Introduction

This guide demonstrates how to replace the RAM of your HP Pavilion TPN-C125 laptop.

Replacing the RAM on your laptop after several years is a great way to lengthen its lifespan. Upgrading the RAM to a newer, faster version will likely increase your laptop's speed and ability to handle tasks. It is important, however, to make sure that the replacement RAM is compatible with the device. This can usually be confirmed by checking the service manual found online. In this case, any DDR3 SODIMM should be safe to use. Otherwise, the replacement process is fairly simple. The only tool necessary for this replacement is a small Phillips head screwdriver.

Before you begin this repair, turn off your laptop and unplug the charger.

  1. UMhNas6UfmFx4SBk
    UMhNas6UfmFx4SBk
    yZvQhPgjelEGeTNU

    • Flip the laptop over so the bottom is facing up and the external battery is at the top.

  2. kdEdTWp5NH1GKh1m
    kdEdTWp5NH1GKh1m
    XP624JgpODu5FJxu

    • Use your thumbs to slide the battery locks towards the center and pop the battery out.

  3. 4KI4ESgR3VYMVHHG
    4KI4ESgR3VYMVHHG
    KhOXxmjykegE2JCG

    • Slowly peel off the two rubber stoppers found at the top corners of the laptop.

    • This will expose two Philips #00 10 mm screws required to remove the back plate.

    • Be careful not to peel off the rubber stoppers too quickly as it could cause the adhesive on the rubber stopper to strip off.

  4. JeGDGF1LvunptIYo
    JeGDGF1LvunptIYo
    ZqoYnpZbqbmXQIQI

    • Use a Phillips #00 screwdriver to remove the twelve 10 mm screws (from the twelve holes shown) that secure the bottom case.

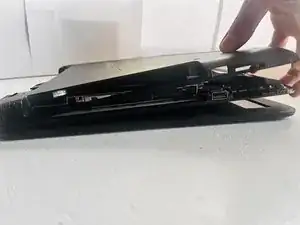

    • Use an opening tool to carefully separate the back case from the chassis, working around all four sides.

    • You will hear a "click" as you release the clips and remove it.

  5. ZuwDPlHclDWvOBE4
    ZuwDPlHclDWvOBE4
    Sk4wPmtEjrU3wHTE
    d3oojoFgw6EL2pDF

    • The RAM sticks can be found in the bottom right section of the laptop.

    • Push both side arms holding the RAM stick in place outwards.

    • The RAM sticks will "pop" up at a 45-degree angle when released from the arms.

    • Slide the RAM sticks out of the socket gently.

  6. w1Sclfm2OZhTbtKS
    w1Sclfm2OZhTbtKS
    EVdkuBcvY3CQOfEt
    FMUUwhjF2iGGWRGF

    • Carefully slide the new replacement RAM sticks into their slots.

    • Make sure to align edge of the RAM sticks with the slots to avoid damaging both.

    • Gently push the RAM sticks downward until the latches click into place to secure them.

Conclusion

To reassemble your device, follow these instructions in reverse order.
