HP Pavilion 15-ab165us Battery Replacement

Difficulty

Very easy

Steps

4

Time Required

1 minute

Introduction

This guide highlights the removal/replacement of the battery for the HP Pavilion 15-ab165us. The battery is a part used in electronics to power the entire device. When the battery becomes damaged or begins to not perform as it used to, it is recommended to replace the battery. CAUTION: If the battery is swollen or damaged be careful removing the part, and dispose of it properly.

  1. AmkSGZJggxUvpHwi
    AmkSGZJggxUvpHwi
    e5suAcSF2TktLrWH
    3sobp2NaADrZGpkP

    • Move the tab on the left from the lock to the unlock position.

  2. udjmqM4NdxtnpaXF

    • Using your other hand, move the tab on the right to the unlocked position and hold.

  3. HIdUElUToTj4SJTi
    HIdUElUToTj4SJTi
    eiKxVqXCDc5Tojw1
    RQsxbKIVYHETypsf

    • Keep your hand in the unlocked position, and maneuver the plastic opening tool in the battery crack and pry upwards.

  4. M5QCY1neuoGtGcqW
    M5QCY1neuoGtGcqW
    oiHGeUJVrtOykbRJ

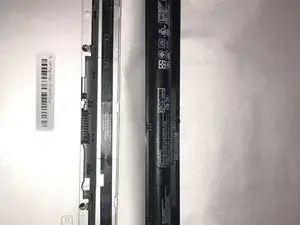

    • Separate the battery from the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
