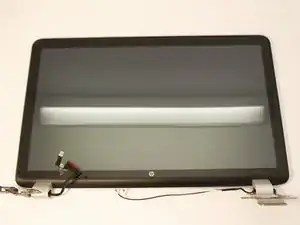

This guide will walk you through the process of replacing a screen in the HP Envy TouchSmart m7 k010dx.
- A screen would need to be replaced if it is cracked, dead, or displays horizontal lines from end to end.
- A screen that is functioning properly will have a clear, crisp display.
- Before you begin, unplug the device and completely power it down.
Tools
Parts
-
-

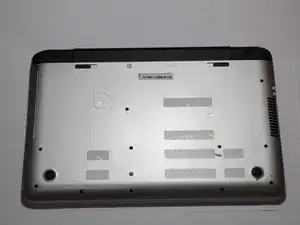

Turn your computer over so that the bottom is facing up.
-
Slide the left black switch towards center.
-
You should see an unlock image exposed to the left of switch if done correctly.
-
-
-

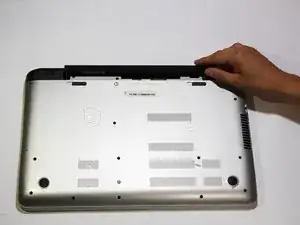

Pivot the loose edge of the battery closes to you by pushing it toward the back of the computer.
-
The battery should slide out freely.
-
-
-
With the computer turned over use a nylon spudger to pry the rectangular pads off to reveal two hidden screws.
-

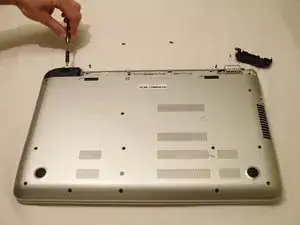

Using a Phillips #0 screwdriver, remove the screw that is beneath the black rubber pad, as well as the other holding down the black corner plastic pieces on both the left and right sides.
-
-
-
Use a plastic opening tool to pop the corners off by wedging between casing. Do this for both legs as depicted in the picture.
-
-
-
Using the Phillips #0 screwdriver, remove the screw in the center of the computer, and to the right of the Beats logo.
-
Use your fingernails to pull out the optical drive. It will have some resistance to start, but will come out easily afterwards.
-
-
-
Using a JIS #00 screwdriver, remove the two screws that were revealed when the optical drive was removed.
-
Use a Phillips #0 screwdriver to remove all screws that are visible on the bottom.
-
There is an oval tab near the center of the laptop, use the flat end of a nylon spudger to wedge it free to reveal another Phillips #0 screw.
-
-
-
Open up the laptop and set it down normally.
-
Use a credit card or spudger to wedge between the top and bottom keyboard casing.
-
Slide the card all the way around the laptop, making sure to pop free all tabs.
-
-
-
Place the computer on the backside of the screen, so that the bottom of it is pointing up into the air.
-
Carefully begin to separate the top case from the bottom case, as if you are opening it like a book from the edge nearest the touch pad.
-
-
-
The two panels are connected with 4 flexible electrical ribbon strips. The ribbon strips have a locking tab that will need to be disengaged prior to removal. Using fingers, begin by removing the two strips nearest to the opening.
-

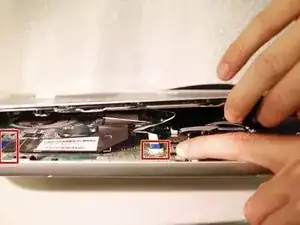

Picture 3 shows the tab unlocked
-
-
-
With the two panels now separated, you can see the other two strips towards the back of the computer. With finger, carefully release each strip from the locking tab.
-
Once all are unplugged, carefully remove the top case.
-
-
-

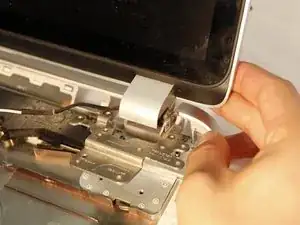

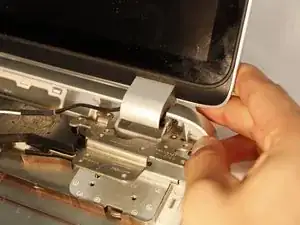

Remove the screen by pulling it forward from the casing. This allows the hinges to clear the casing.
-
-
-

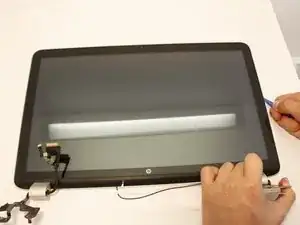

Use a plastic opening tool along the gap between the screen and the back panel to separate the two pieces.
-
-
-
Carefully separate the display unit from its back panel.
-
Flip the display unit over. Slowly remove the output cable from clips holding it in place.
-
To remove the two strip running to top of display simply lift to loosen the tack glue holding them in place.
-
-
-

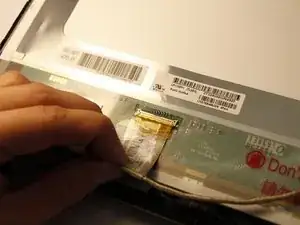

Use the spudger or your finger to remove the tape on the output connection.
-
Slowly and carefully pull the cable out from the connection.
-
-
-
To remove the screen from its bezel there are a total of 4 Phillips head screws. 2 on left and 2 on right of the display unit.
-
Use a Phillips #0 screwdriver to remove the screws.
-
The display unit can now be taken out freely.
-
To reassemble your device, follow these instructions in reverse order.
