HP Deskjet F4480 Mother Board Replacement

Written By: Allen Bailey
  • Comments: 3
HP Deskjet F4480 Mother Board Replacement

Difficulty

Moderate

Steps

9

Time Required

15 minutes

Introduction

If there are communication problems between the computer and your HP Deskjet F4480 printer, replacing the motherboard is an option to consider in order to fix this problem. The motherboard controls all operations and functions of the printer enabling it to run properly and communicate with the computer.

  1. fbOSJ2SUWeoVnT6f

    • Open the front access panel by placing your finger in the front slot and pulling gently.

  2. 2uY1BMZnTFJ5lLdy

    • Open the protective lid that is covering the glass. Press gently against the base of the panel to remove the lid from the rest of the printer.

  3. YSFVJM5TsLMJSdta
    YSFVJM5TsLMJSdta
    Fh2UoPWksLMVYT2o
    1JeKDq4CuNswU6Zh

    • Remove the four 9mm T10 Torx screws on the top.

  4. wwDIt4qrEkXESmFe
    wwDIt4qrEkXESmFe
    YNJYpZSOA3T2uBOq

    • Carefully lift the top panel off of the printer.

    • Do not tear or damage the two cables that connect the top lid to the motherboard.

  5. FS1GKIRPc3sIZKbq
    FS1GKIRPc3sIZKbq
    lDXBAjQYOgETHdBV
    BPJLixHDOQSU53tM

    • Remove the two cables by gripping each one close to their connection ports on the motherboard and gently disconnecting them.

  6. mFLMcxZhQDI64anL
    mFLMcxZhQDI64anL
    ACQjoqHWcs5VIqlt

    • The mother board is located at the back of the printer.

  7. cCABwKi6UIQrQc6u
    cCABwKi6UIQrQc6u
    xayedTxISHExE51n
    vUQ3oTpHJLbmUFjn

    • Take note of the wire's location and orientation as this will be important to properly reassemble your device.

    • Remove all of the wires connected to the mother board. There are seven in total.

  8. 5LLkOkOMViKGAqQW
    5LLkOkOMViKGAqQW
    HWLvltmxOecKedeJ

    • Remove the three 9mm T10 Torx screws that hold the motherboard to the body of the printer

  9. DTtXMKVKuxcADlpb

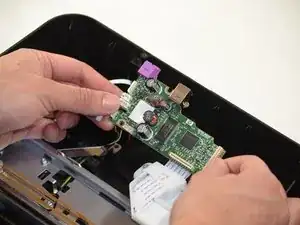

    • At this point, the mother board should be free of all connections from the rest of the printer.

    • Remove and replace the mother board with the new one.

Conclusion

To reassemble your device, follow these instructions in reverse order.
