HP Compaq Pro 6300 RAM Replacement

Written By: 907fixer
  • Comments: 0
HP Compaq Pro 6300 RAM Replacement

Difficulty

Easy

Steps

4

Time Required

5 minutes

Introduction

A guide to upgrading the RAM in the HP Compaq Pro 6300.

  1. trJtojAUfM5Ir4ND
    trJtojAUfM5Ir4ND
    43GjwURxisLyabj4

    • Grab the handle and pull, then lift the cover off.

    • Make sure the power cord and other connectors are disconnected before beginning. You should also drain any residual power by pushing the power button after the computer is unplugged.

  2. nd1FfKtxJNhGGBdG
    nd1FfKtxJNhGGBdG
    PCJNZqnpDNOeqBi2
    eirAWKgmSVvHEVNE

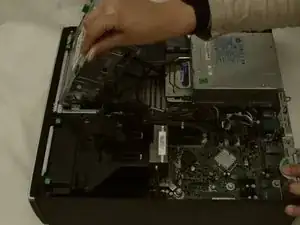

    • Grab the tab and pull up the DVD drive to access the RAM.

  3. YRaXDkxMiF3kiEvO
    YRaXDkxMiF3kiEvO
    42XgQqDMKAloPdjT
    IrftIPkPDMgk5yYy

    • Put your thumbs on the two tabs surrounding the RAM sticks and push down.

    • This requires a lot of pressure, so don't be afraid to give it some force.

    • If you need more room, you can unplug the SATA cables that connect the hard drive and DVD drive to the computer- just make sure you plug them back in when you finish.

    • Pull the module out by the top or the sides. Take care not to touch the delicate pins at the bottom and the chips on the surface.

    • You may have a different number of modules depending on your configuration. If you have one or more empty slot, you can skip to step 4.

  4. cTvODp2eKiRKojk5
    cTvODp2eKiRKojk5
    iRy2ustj5ZElyQkb
    jqtcKajftNwuYrDC

    • Insert the new module, lining the notch on the module with the notch in the slot.

    • Push down on the module until you hear both tabs lock into the notches.

    • This requires a great deal of pressure, so after you've checked that the notch on the bottom is lined up correctly, don't be afraid to push hard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
