HP Chromebook x360 14c-ca0053 Fan Replacement

Written By: Cassidy
  • Comments: 0
HP Chromebook x360 14c-ca0053 Fan Replacement

Difficulty

Moderate

Steps

14

Time Required

20 - 35 minutes

Introduction

This guide outlines how to remove the fan of an HP Chromebook x360 14c-ca0053. The fan functions to prevent the device from overheating, but it is fragile and susceptible to damage. If the device is overheating or making a whining sound, the fan likely needs to be replaced.

  1. 1QvSNoNaupMqCtMO
    1QvSNoNaupMqCtMO
    HDJHKFkx2cqeMGoD

    • Use tweezers to apply light pressure on the outer sides of the 2 small screw covers located near the bottom of the device.

    • Rotate the covers until they pop up out of the screw socket enough to remove them with tweezers.

  2. 1M4BPaIwfQZqjBcy
    1M4BPaIwfQZqjBcy
    gGGF4ffEMWsnorPe

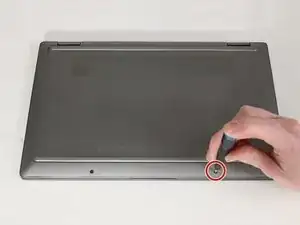

    • Use a Phillips #1 screwdriver to remove the two 3.5 mm screws.

  3. cw62pDk2IcuRNW4i
    cw62pDk2IcuRNW4i
    1OGHUOeJBh2tuROG
    PD24tbFWGVKsSDZy

    • Use tweezers to peel back the feet on the top and bottom of the Chromebook to reveal four additional screws.

  4. sKDBjYdNDEXXC3mM
    sKDBjYdNDEXXC3mM
    fIhpruWcsBQFU1Lt

    • Use a Phillips #1 screwdriver to remove the 4 7 mm screws located at each corner of the device under the grips.

  5. uolwOIlRYOAFSGvN
    uolwOIlRYOAFSGvN
    2i22Vl25mBvqUOMB
    r3HnJWqKhRTbXiMM

    • Insert an opening pick between lower case and chassis.

    • Separate the lower case from the frame by sliding the opening pick along the perimeter until the case releases.

  6. pTRthYlmTipWXHJp

    • Lift the lower case up and off.

  7. XNUCIMSHWjS6YwNu
    XNUCIMSHWjS6YwNu
    lsExAKWPwyvUfmdc
    RB32xUAYfprf5ING

    • Open the tweezers wide enough to fit on each side of motherboard battery connection.

    • Pull the connector directly out of its socket.

  8. t1uKRviAr2QMklKW
    t1uKRviAr2QMklKW
    DdLmCqoY3oPK3EJH

    • Use a Phillips #0 screwdriver to remove the five 3 mm screws that secure the battery.

    • These screws are labeled 1-5.

  9. pufaZ6DvKAnINtxd

    • Lift the battery up and out.

    • Be careful as to not puncture or damage the battery.

  10. HnjhpgPPAx1sBbCn
    HnjhpgPPAx1sBbCn
    OlLrXW4beNOkqmyP

    • Use a Phillips #0 screwdriver to remove the four 3 mm screws that secure the heatsink.

  11. yrR1VHYTiUAXw2DK

    • Remove the heat sink.

    • Add thermal paste to the new heat sink before replacement.

  12. 31A4vJgdSyeG5jLq
    31A4vJgdSyeG5jLq
    KO3gTTSpGXI5EotD
    DUPnN6HdHZC1RufT

    • Use a Phillips #0 screwdriver to remove the three 3 mm screws that secure the fan.

  13. GMxoGTteOZkMJM2C
    GMxoGTteOZkMJM2C
    Af2adTDWctZIlc2G
    p5IZliovqIFsFFSG

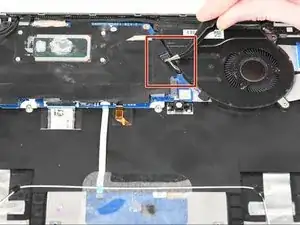

    • Place the tweezers gently underneath the fan's motherboard connection and lift up to disconnect it.

  14. BqdYSDZ1MYWntVOm

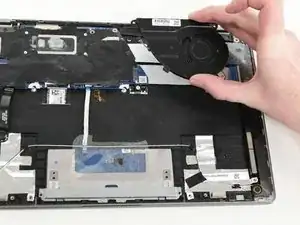

    • Lift the fan up and out of the chassis.

Conclusion

To reassemble your device, follow these instructions in reverse order.
