HP Chromebook 14-ak041dx Heat Sink Replacement

Written By: Kristen Gismondi

Comments: 2

HP Chromebook 14-ak041dx Heat Sink Replacement

Difficulty

Moderate

Steps

Time Required

15 - 20 minutes

Introduction

In this guide, it will outline the process to effectively and safely replace the heat sink inside of a HP Chromebook without damaging the computer itself.

Tools

Step 1

You will need a pair of tweezers and a Phillips screwdriver.
Remove eight 5mm Phillips #0 screws from the back cover of the laptop.

Step 2

Using a pair of tweezers, remove the five grey silicone covers.
Remove the five 5mm Phillips #0 screws beneath the grey silicone covers.
Place them aside where they will not be lost.

I’d love a solution to replace the grey silicone covers which are no longer sticky enough. Can you or anyone else advise? I am open to buying a new sticky circle, just not sure where to turn!

Katie Courter - 10/06/20

Step 3

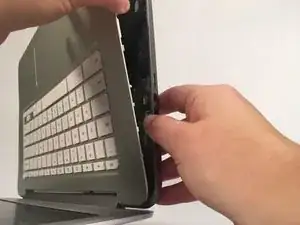

Carefully open your Chromebook case and gently pull the keyboard away from the back panel.
Place the keyboard aside. Inspect for any visual damage or marks.

Step 4

Remove the four 3mm Phillips #000 screws holding the battery in place.

Step 5

Slide a spudger underneath the white strip over the battery to gently pull the strip away from the adhesive sticking to the battery.
Using a pair of tweezers, grip the black tape connected to the battery, and gently pull back to unplug the battery.
